Release Info
| Catalog ID | JF-17 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | April 15, 1988 |
| Publisher | Jaleco |
| Developer | TOSE Software |
| Players | 2 |
| Peripherals | Famicom Controller |

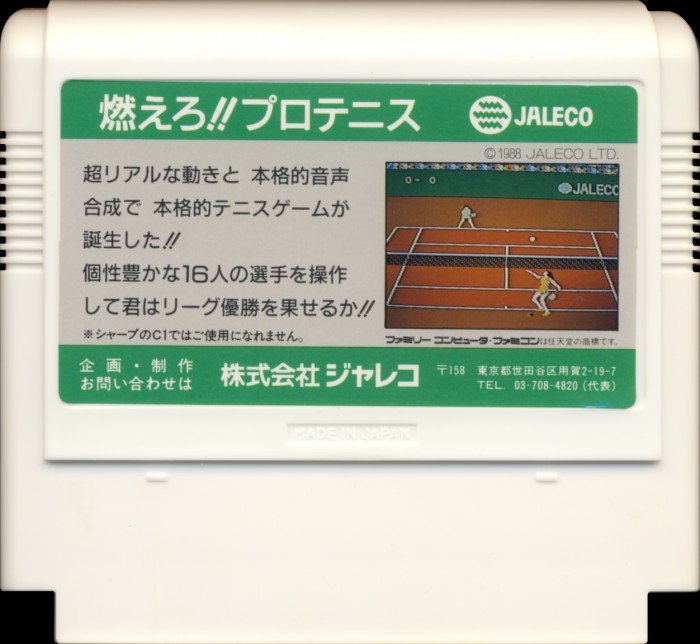

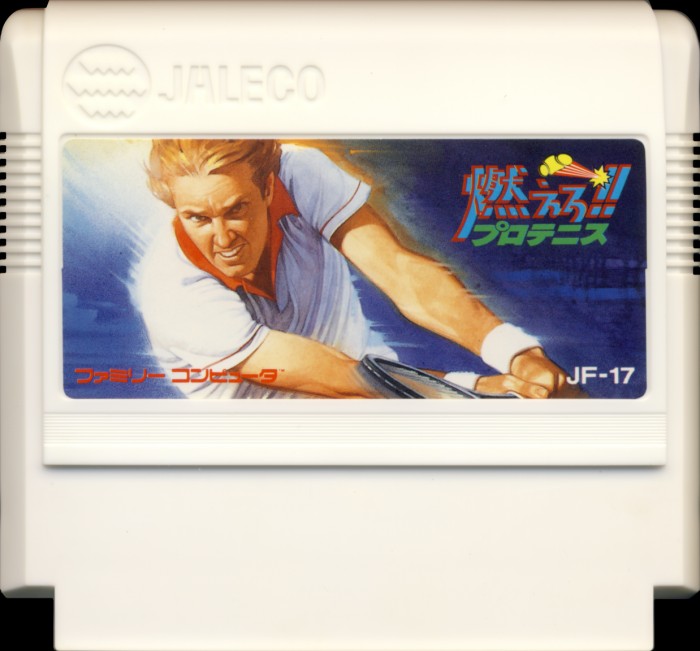

Cart Properties
| Cart Producer | Jaleco |
|---|---|
| Color | White |
| Form Factor | Large |
| Embossed Text | Made in Japan |
| Front Label ID | JF-17 |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

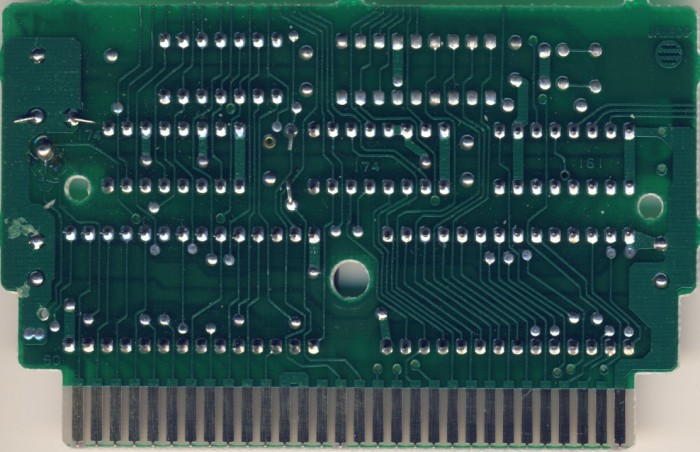

PCB Properties
| Name | JF-17 |
|---|---|
| PCB Producer | Jaleco |
| Manufacturer | Not Specified |
| Mfg Range | 8814 |
| Est First Run | April 1988 |
| PCB Class | JALECO-JF-17 |
| iNES Mapper | 72 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | 74xx161, 74xx174, 74xx174, 74xx32, D7756C |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | Not Present | 128 KB | 598A7398 | 1 |
| CHR0 | JF-17 CHR | 128 KB | 43E86EFA | 1 |
| N/A | ROMs Combined | 256 KB | 6C61B622 | 1 |

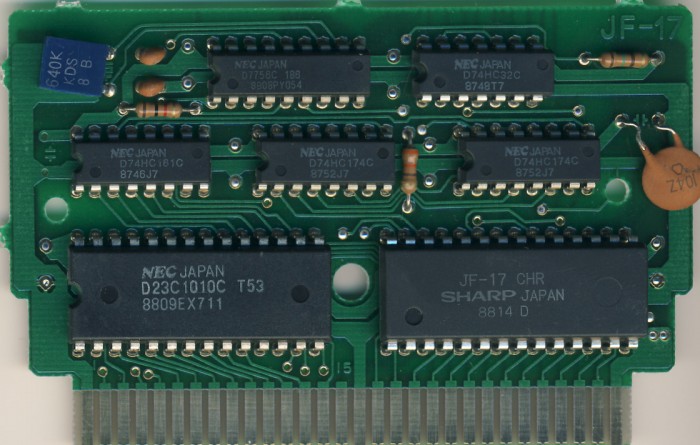

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| NEC | D23C1010C T53 | Mask ROM 128 KB | DIP-28 | 8809 EX711 | 8809 | ||
| Sharp | LH2310 | Mask ROM 128 KB | DIP-28 | 8814 D | 8814 | ||
| 161 | NEC | D74HC161C | 74-161 Series | DIP-16 | 8746 J7 | 8746 | |
| 174 | NEC | D74HC174C | 74-174 Series | DIP-16 | 8752 J7 | 8752 | |
| 174 | NEC | D74HC174C | 74-174 Series | DIP-16 | 8752 J7 | 8752 | |
| NEC | D74HC32C | 74-32 Series | DIP-14 | 8748 T7 | 8748 | ||
| NEC | D7756C 186 | ADPCM Speech Chip 256 kb | DIP-18 | 8808 PY054 | 8808 |
