Release Info
| Catalog ID |
CAP-6V |
| Region |
Japan (NTSC) |
| Class |
Licensed |
| Release Date |
November 5, 1993 |
| Publisher |
Capcom |
| Developer |
Capcom |
| Players |
1 |
| Peripherals |
Famicom Controller |

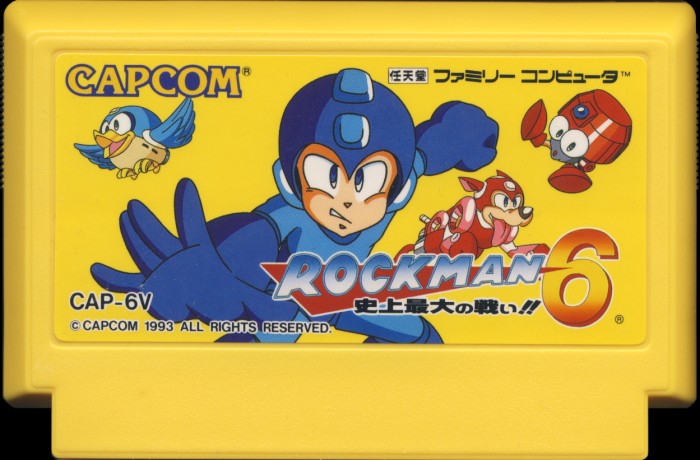

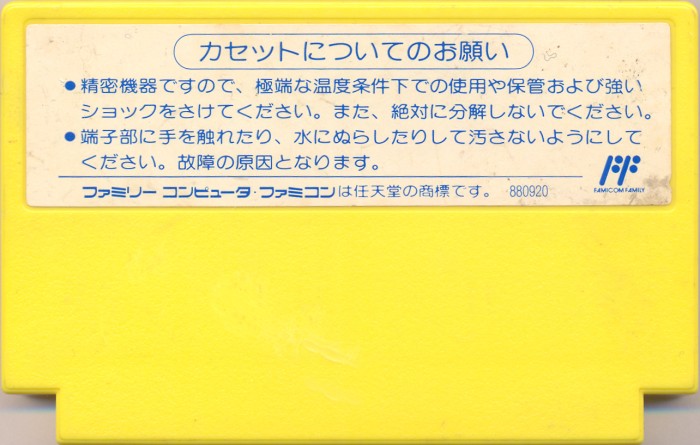

Cart Properties
| Cart Producer |
Nintendo (Famicom) |
| Color |
Yellow |
| Form Factor |
Small |
| Embossed Text |
|
| Front Label ID |
CAP-6V |
| Seal of Quality |
|
| MfgString Present |
|
| 2-digit Code |
09 |
PCB Properties
| Name |
HVC-TGROM-01 |
| PCB Producer |
Nintendo |
| Manufacturer |
Not Specified |
| Mfg Range |
9348 |
| Est First Run |
December 1993 |
| PCB Class |
HVC-TGROM |
| iNES Mapper |
4 |
| Mirroring |
Mapper Ctrl |
| Battery present |
No |
| WRAM |
0 KB |
| VRAM |
8 KB |
| CIC Type |
None |
| Hardware |
MMC3C |
ROM Details
| Type |
Label |
Size |
CRC32 |
x ! |
| PRG0 |
CAP-6V-0 PRG |
512 KB |
2D664D99 |
1 |
Detailed Chip Info
| Designation |
Maker |
Part # |
Type |
Package |
Date Code |
Std |
Misc |
| U1 PRG |
NEC |
UPD23C4013ACZ
W71
|
Mask ROM
512 KB
|
DIP-32 |
9348
ED110
|
9348 |
|
| U2 CHR-RAM |
LSI Logic |
LH5268AF-10TLL
|
SRAM
8 KB
|
DIP-28 |
346
D
|
9346 |
|
| U3 MMC3 |
NEC |
MMC3C
|
Nintendo MMC3
|
TQFP-44 |
9346
EX015
|
9346 |
|
