Release Info
| Catalog ID | CAP-5V |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | December 4, 1992 |
| Publisher | Capcom |
| Developer | Capcom |
| Players | 1 |
| Peripherals | Famicom Controller |

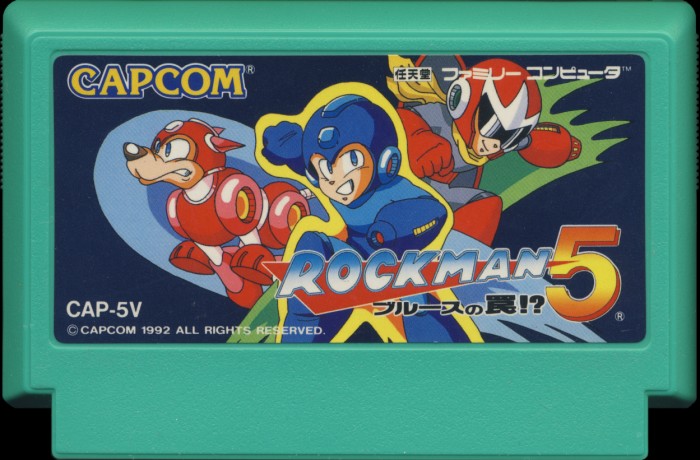

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Medium Sea Green |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | CAP-5V |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 05 |

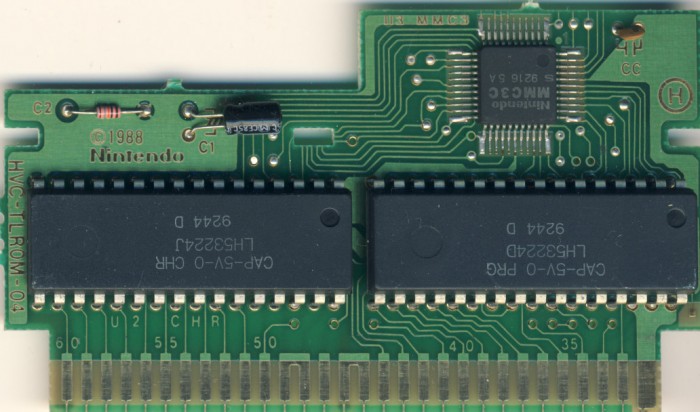

PCB Properties
| Name | HVC-TLROM-04 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9244 - 9244 (3) |
| Est First Run | November 1992 |
| PCB Class | HVC-TLROM |
| iNES Mapper | 4 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | MMC3C |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | CAP-5V-0 PRG | 256 KB | 05CF9EB0 | 3 |
| CHR0 | CAP-5V-0 CHR | 256 KB | 482C358D | 3 |
| N/A | ROMs Combined | 512 KB | FDDF2135 | 3 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Sharp | LH5322 4D | Mask ROM 256 KB | DIP-32 | 9244 D | 9244 | |
| U2 CHR | Sharp | LH5322 4J | Mask ROM 256 KB | DIP-32 | 9244 D | 9244 | |
| U3 MMC3 | Sharp | MMC3C | Nintendo MMC3 | TQFP-44 | 9216 5 A | 9216 |
