Release Info
| Catalog ID | NES-GR-EEC |
|---|---|
| Region | Europe (PAL-B) |
| Class | Licensed |
| Release Date | November 30, 1988 |
| Publisher | Konami |
| Developer | Konami |
| Players | 2 |
| Peripherals | NES Controller |

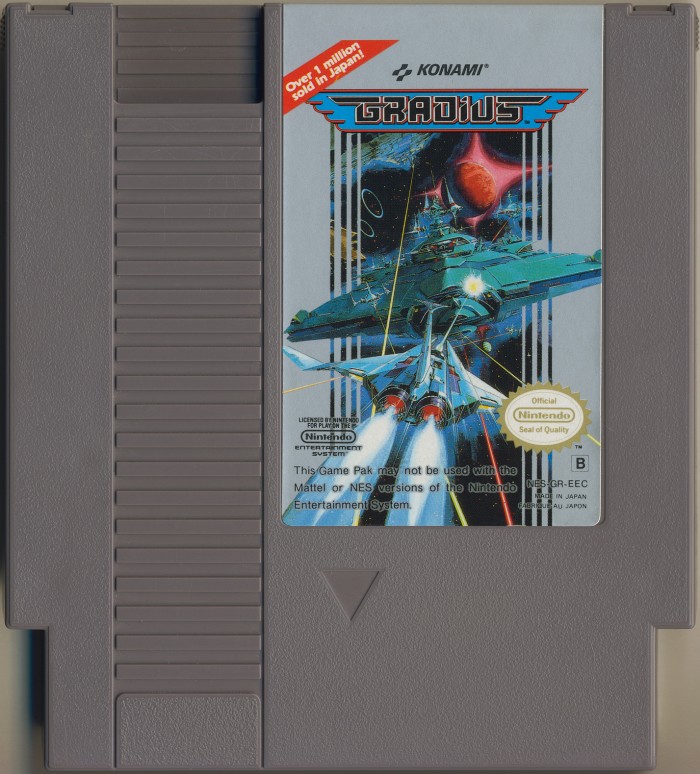

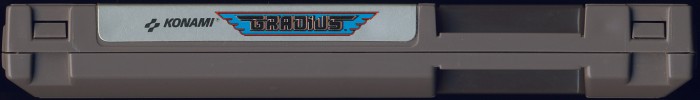

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-GR-EEC |
| Seal of Quality | Oval (TM) |
| MfgString Present | Yes |
| 2-digit Code | 08 |

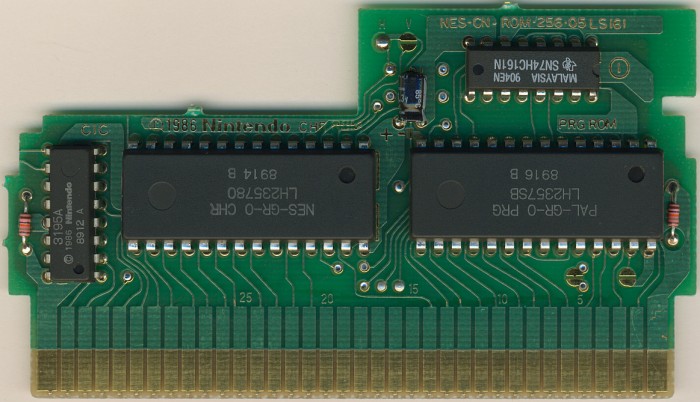

PCB Properties
| Name | NES-CN-ROM-256-05 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8844 - 8916 (4) |
| Est First Run | November 1988 |
| PCB Class | NES-CNROM |
| iNES Mapper | 3 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 3195A |
| Hardware | 74xx161 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | PAL-GR-0 PRG | 32 KB | D52EBAA6 | 5 |
| CHR0 | NES-GR-0 CHR | 32 KB | 0DDDD32E | 9 |
| N/A | ROMs Combined | 64 KB | 51C51C35 | 5 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PRG ROM | Sharp | LH2357 SB | Mask ROM 32 KB | DIP-28 | 8916 B | 8916 | |
| CHR ROM | Sharp | LH2357 80 | Mask ROM 32 KB | DIP-28 | 8914 B | 8914 | |
| CIC | Sharp | 3195A | Nintendo CIC | DIP-16 | 8912 A | 8912 | |
| LS161 | Texas Instruments | SN74HC161N | 74-161 Series | DIP-16 | 904 EN | 8904 |
