Release Info
| Catalog ID | KON-RC810 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | April 25, 1986 |
| Publisher | Konami |
| Developer | Konami |
| Players | 2 |
| Peripherals | Famicom Controller |

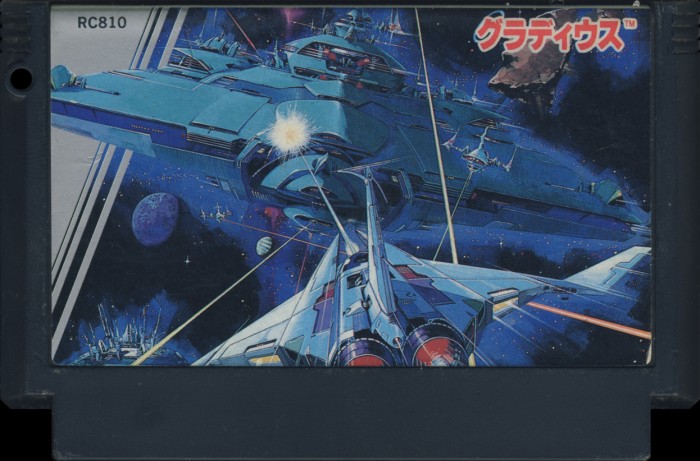

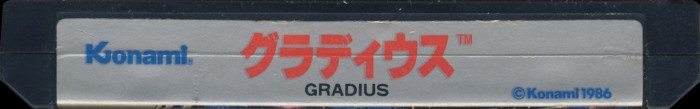

Cart Properties
| Cart Producer | Konami |
|---|---|
| Color | Black |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | RC810 |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

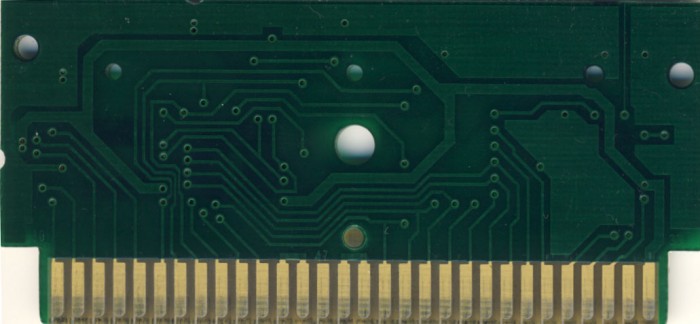

PCB Properties
| Name | 810J02 |
|---|---|
| PCB Producer | Konami |
| Manufacturer | Sharp |
| Mfg Range | 8612 - 8616 (3) |
| Est First Run | March 1986 |
| PCB Class | KONAMI-CNROM |
| iNES Mapper | 3 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | 74xx161 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | Not Present | 32 KB | 9204A65D | 3 |
| CHR0 | Not Present | 32 KB | DE963BEC | 3 |
| N/A | ROMs Combined | 64 KB | D8EFF0DF | 3 |

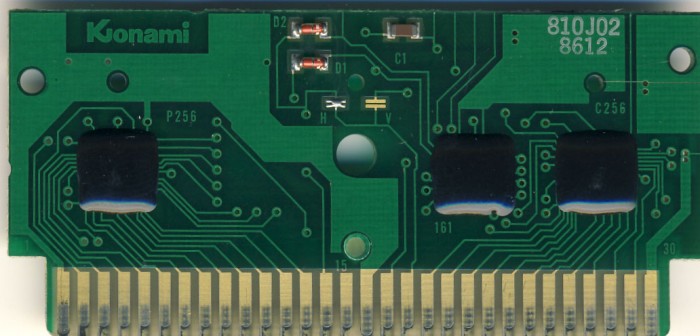

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PCB | Sharp | 810J02 | Chip-on-Board PCB | PCB | 8612 | 8612 | |
| P256 | __Unknown | EP256 | Bonded ROM 32 KB | EPOXY | |||
| C256 | __Unknown | EP256 | Bonded ROM 32 KB | EPOXY | |||
| 161 | __Unknown | EP74161 | 74-161 Series | EPOXY |
