Release Info
| Catalog ID | IF-29 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | October 22, 1993 |
| Publisher | Irem |
| Developer | Micronics / Khaos |
| Players | 1 |
| Peripherals | Famicom Controller |

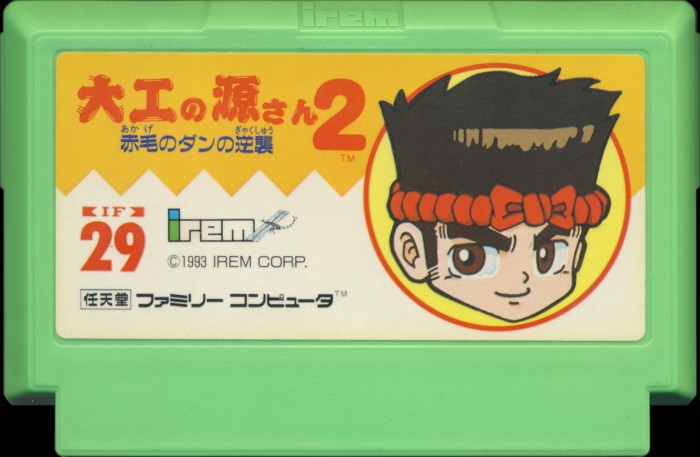

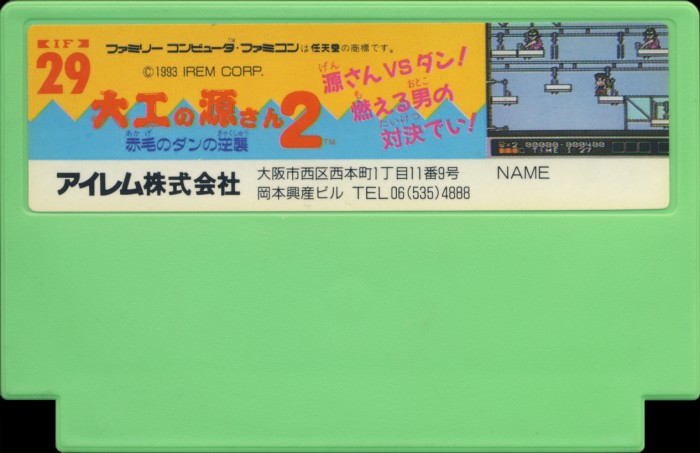

Cart Properties
| Cart Producer | Irem |
|---|---|
| Color | Lime Green |
| Form Factor | New Style |
| Embossed Text | |
| Front Label ID | IF-29 |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

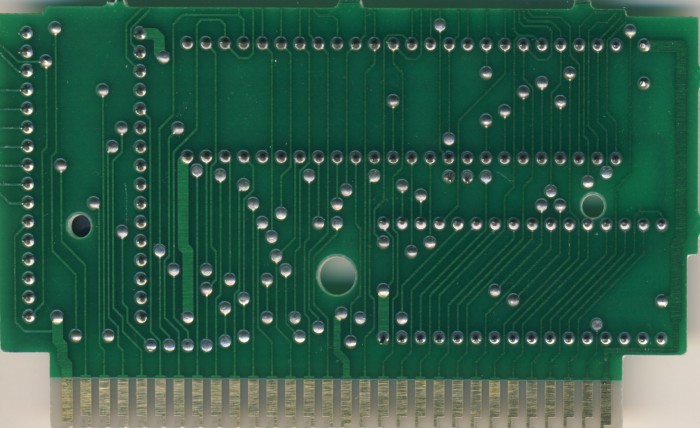

PCB Properties
| Name | FC-00-017C |
|---|---|
| PCB Producer | Irem |
| Manufacturer | Not Specified |
| Mfg Range | 9341 |
| Est First Run | October 1993 |
| PCB Class | IREM-H3001 |
| iNES Mapper | 65 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | IF-H3001 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | Not Present | 256 KB | 744893DA | 1 |
| CHR0 | Not Present | 256 KB | 8F4C28E6 | 1 |
| N/A | ROMs Combined | 512 KB | 93B2CEC4 | 1 |

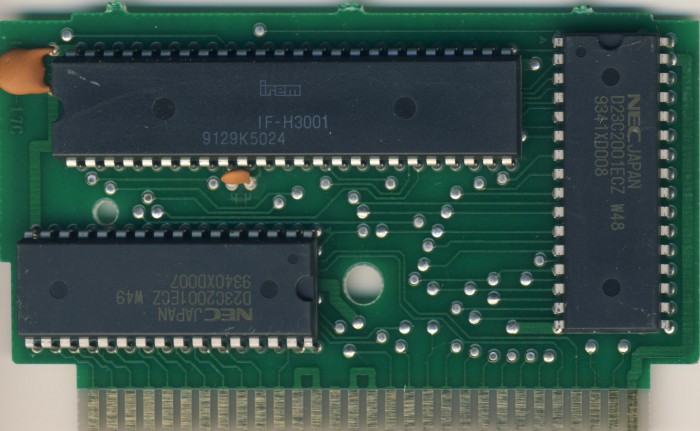

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PRG | NEC | D23C2001ECZ W48 | Mask ROM 256 KB | DIP-32 | 9341 XD008 | 9341 | |
| CHR | NEC | D23C2001ECZ W49 | Mask ROM 256 KB | DIP-32 | 9340 XD007 | 9340 | |
| H3001 | NEC | IF-H3001 | Irem H3001 | DIP-48 | 9129 K5024 | 9129 |
