Release Info
| Catalog ID | BTC-DY |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | October 11, 1988 |
| Publisher | Bothtec (Quest) |
| Developer | SystemSoft |
| Players | 2 |
| Peripherals | Famicom Controller |

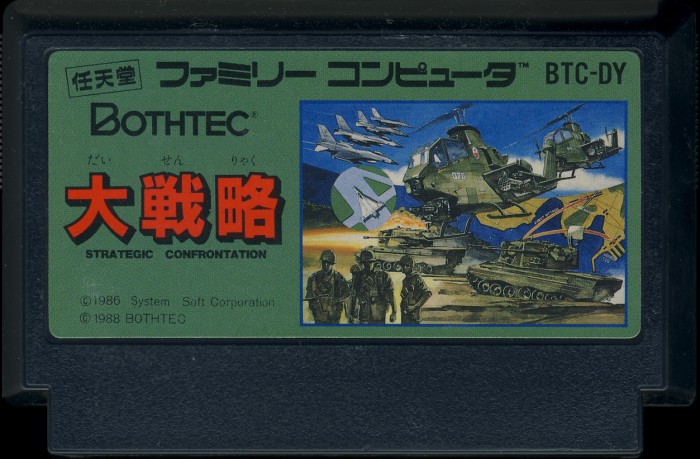

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Black |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | BTC-DY |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 09 |

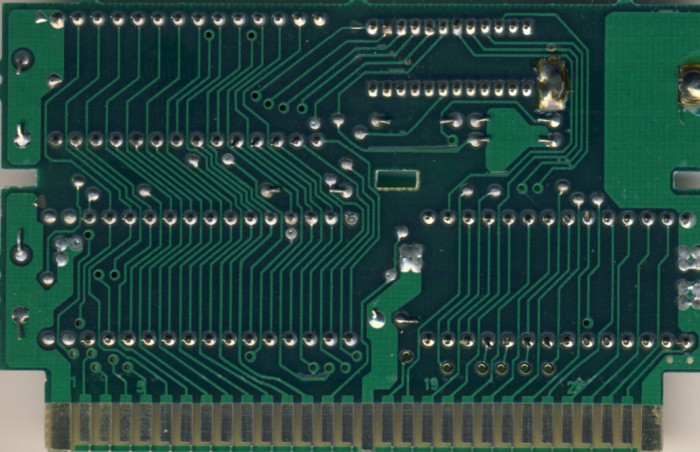

PCB Properties
| Name | HVC-SJROM-03 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8839 - 8916 (2) |
| Est First Run | September 1988 |
| PCB Class | HVC-SJROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | Yes |
| WRAM | 8 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | MMC1A |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | BTC-DY-0 PRG | 128 KB | 53A94738 | 2 |
| CHR0 | BTC-DY-0 CHR | 32 KB | C0948F45 | 2 |
| N/A | ROMs Combined | 160 KB | 5A5A0CD9 | 2 |

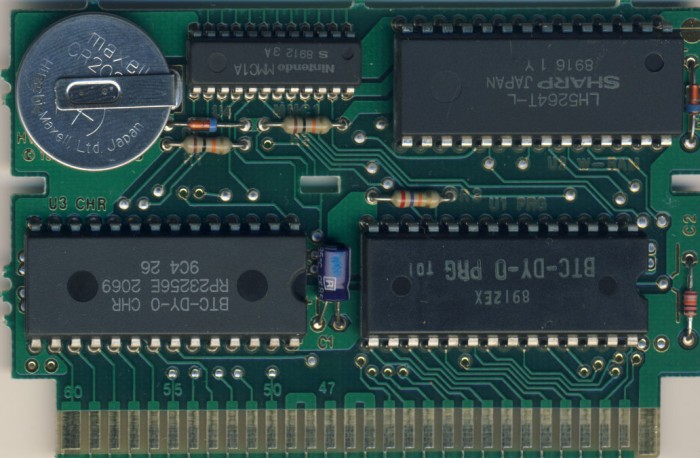

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | NEC | UPD23C1010 | Mask ROM 128 KB | DIP-28 | 8912 EX | 8912 | |
| U2 W-RAM | Sharp | LH5264T-L | SRAM 8 KB | DIP-28 | 8916 1 Y | 8916 | |
| U3 CHR | Ricoh | RP23256E 2069 | Mask ROM 32 KB | DIP-28 | 9C4 26 | 8913 | |
| U4 MMC1 | Sharp | MMC1A | Nintendo MMC1 | DIP-24 | 8912 3 A | 8912 |
