Release Info
| Catalog ID | KSC-UV |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | September 29, 1989 |
| Publisher | Kemco |
| Developer | Icom Simulations |
| Players | 1 |
| Peripherals | Famicom Controller |

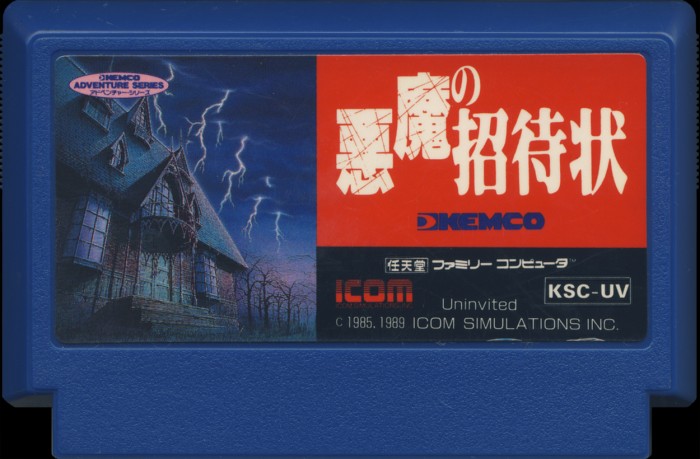

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Dark Blue |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | KSC-UV |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 09 |

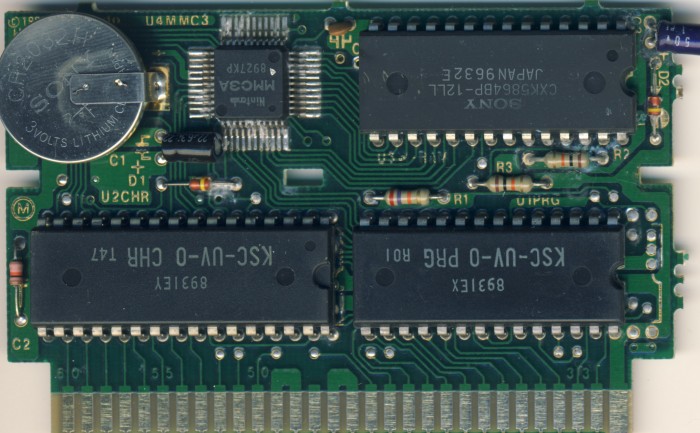

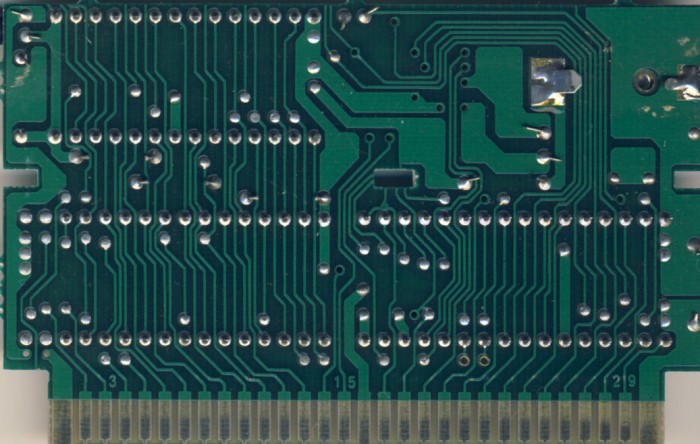

PCB Properties
| Name | HVC-TKROM-01 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8931 |
| Est First Run | August 1989 |
| PCB Class | HVC-TKROM |
| iNES Mapper | 4 |
| Mirroring | Mapper Ctrl |
| Battery present | Yes |
| WRAM | 8 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | MMC3A |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | KSC-UV-0 PRG | 128 KB | BF8C1116 | 1 |
| CHR0 | KSC-UV-0 CHR | 128 KB | EBE60D7E | 1 |
| N/A | ROMs Combined | 256 KB | 1248326D | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | NEC | UPD23C1010 | Mask ROM 128 KB | DIP-28 | 8931 EX | 8931 | |
| U2 CHR | NEC | UPD23C1013 | Mask ROM 128 KB | DIP-32 | 8931 EY | 8931 | |
| U3 W-RAM | Sony | CXK5864BP-12LL | SRAM 8 KB | DIP-28 | 96 32E | 8922 | |
| U4 MMC3 | NEC | MMC3A | Nintendo MMC3 | TQFP-44 | 8927 KP | 8927 |
