Release Info
| Catalog ID | BA-AKUMA |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | February 24, 1990 |
| Publisher | Bandai |
| Developer | TOSE Software |
| Players | 1 |
| Peripherals | Famicom Controller |

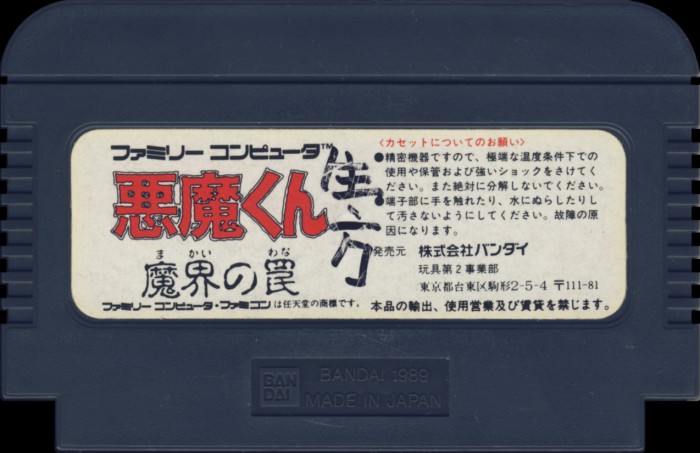

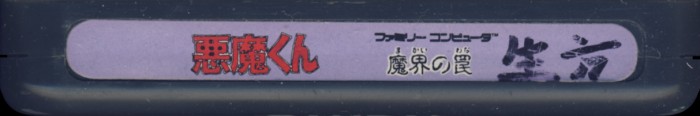

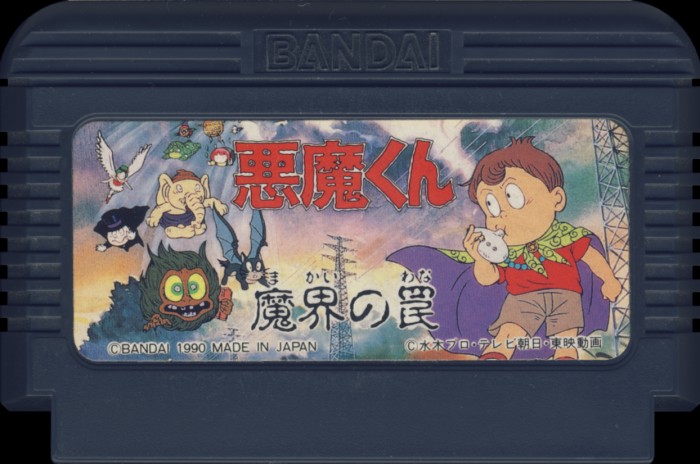

Cart Properties
| Cart Producer | Bandai |
|---|---|
| Color | Black |
| Form Factor | Small |
| Embossed Text | Bandai 19xx Made in Japan |
| Front Label ID | |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

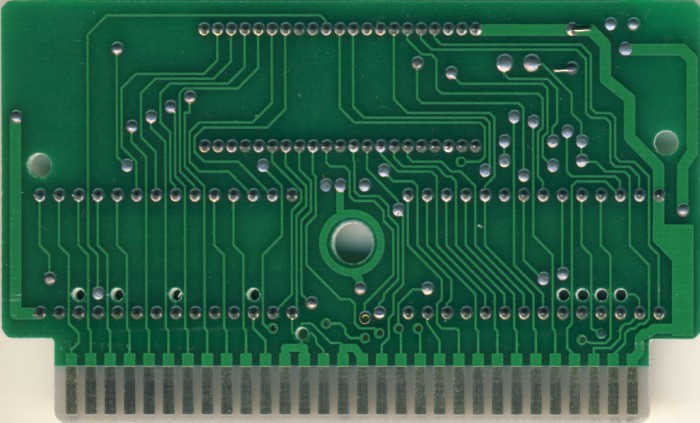

PCB Properties
| Name | BA-アクマ |
|---|---|
| PCB Producer | Bandai |
| Manufacturer | Not Specified |
| Mfg Range | 9003 - 9003 (2) |
| Est First Run | January 1990 |
| PCB Class | BANDAI-FCG-2 |
| iNES Mapper | 16 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | FCG-2 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | BANDAI.89 AKUMA-PRG | 128 KB | E699A97C | 2 |
| CHR0 | BANDAI.89 AKUMA-CHR | 128 KB | DFA83B7E | 2 |
| N/A | ROMs Combined | 256 KB | 2C4421B2 | 2 |

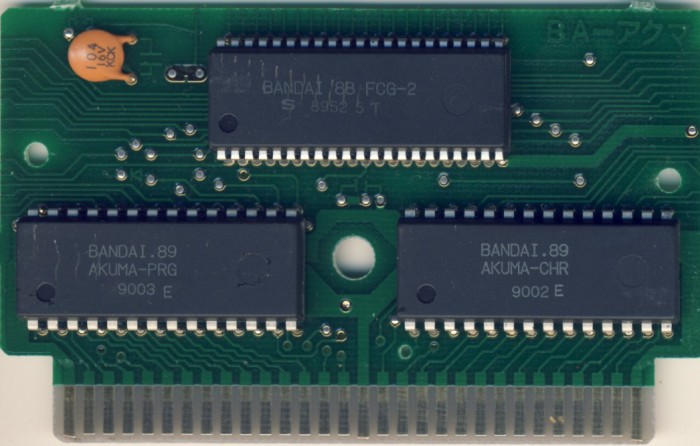

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| Sharp | LH2310 | Mask ROM 128 KB | DIP-28 | 9003 E | 9003 | ||
| Sharp | LH2310 | Mask ROM 128 KB | DIP-28 | 9002 E | 9002 | ||
| Sharp | FCG-2 | Bandai FCG-2 | DIP-42 | 8952 5 T | 8952 |
