Release Info
| Catalog ID | CDS-PG |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | September 17, 1993 |
| Publisher | Coconuts |
| Developer | Soft Machine |
| Players | 1 |
| Peripherals | Famicom Controller |

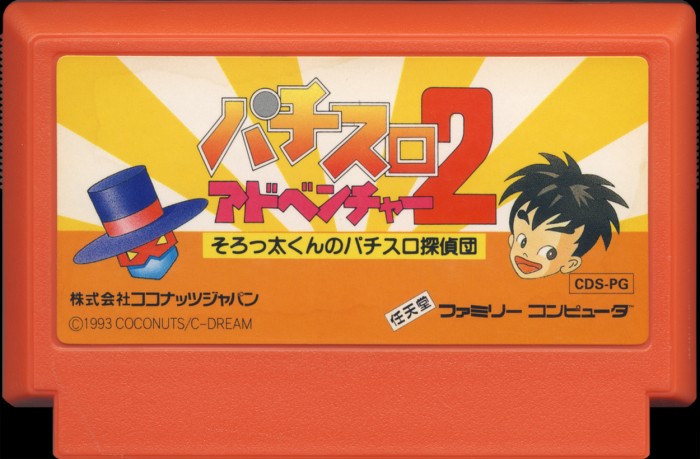

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Orange-Red |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | CDS-PG |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 11 |

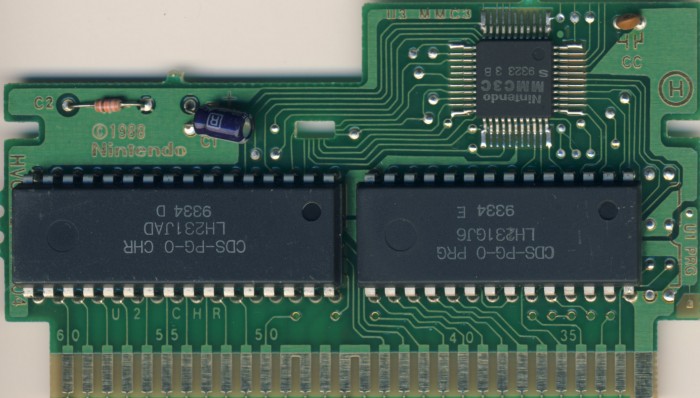

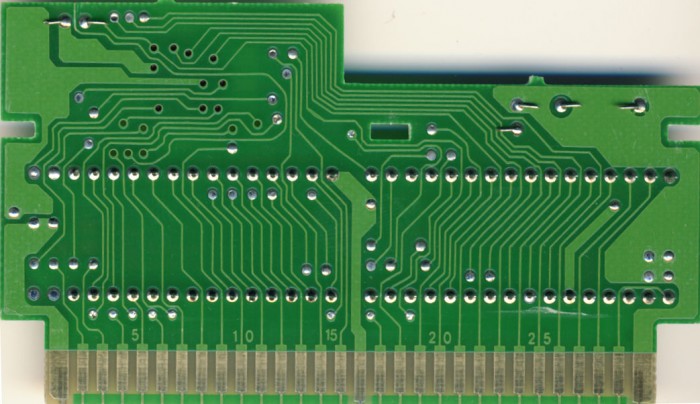

PCB Properties
| Name | HVC-TLROM-04 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9334 |
| Est First Run | August 1993 |
| PCB Class | HVC-TLROM |
| iNES Mapper | 4 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | MMC3C |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | CDS-PG-0 PRG | 128 KB | C4E5ABB8 | 1 |
| CHR0 | CDS-PG-0 CHR | 128 KB | C8695622 | 1 |
| N/A | ROMs Combined | 256 KB | 9EEFB4B4 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Sharp | LH231G J6 | Mask ROM 128 KB | DIP-28 | 9334 E | 9334 | |
| U2 CHR | Sharp | LH231J AD | Mask ROM 128 KB | DIP-32 | 9334 D | 9334 | |
| U3 MMC3 | Sharp | MMC3C | Nintendo MMC3 | TQFP-44 | 9323 3 B | 9323 |
