Release Info
| Catalog ID | HVC-PI |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | May 13, 1994 |
| Publisher | Coconuts |
| Developer | Aisystem Tokyo |
| Players | 1 |
| Peripherals | Famicom Controller |

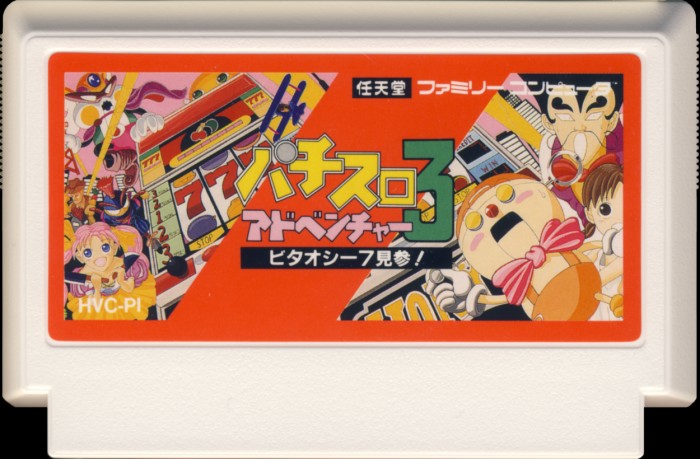

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | White |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | HVC-PI |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 12 |
PCB Properties
| Name | HVC-TLROM-04 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9409 |
| Est First Run | March 1994 |
| PCB Class | HVC-TLROM |
| iNES Mapper | 4 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | MMC3C |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | HVC-PI-0 PRG | 128 KB | 47A60CF1 | 1 |
| CHR0 | HVC-PI-0 CHR | 128 KB | 2B6EBCC3 | 1 |
| N/A | ROMs Combined | 256 KB | 051CD5F2 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Ricoh | RP231027D 6748 | Mask ROM 128 KB | DIP-28 | 4CC 40 | 9409 | |
| U2 CHR | Ricoh | RP231039D 0201 | Mask ROM 128 KB | DIP-32 | 4CC 40 | 9409 | |
| U3 MMC3 | Sharp | MMC3C | Nintendo MMC3 | TQFP-44 | 9316 7 A | 9316 |
