Release Info
| Catalog ID | KON-RC861 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | June 26, 1992 |
| Publisher | Konami |
| Developer | Konami |
| Players | 1 |
| Peripherals | Famicom Controller |

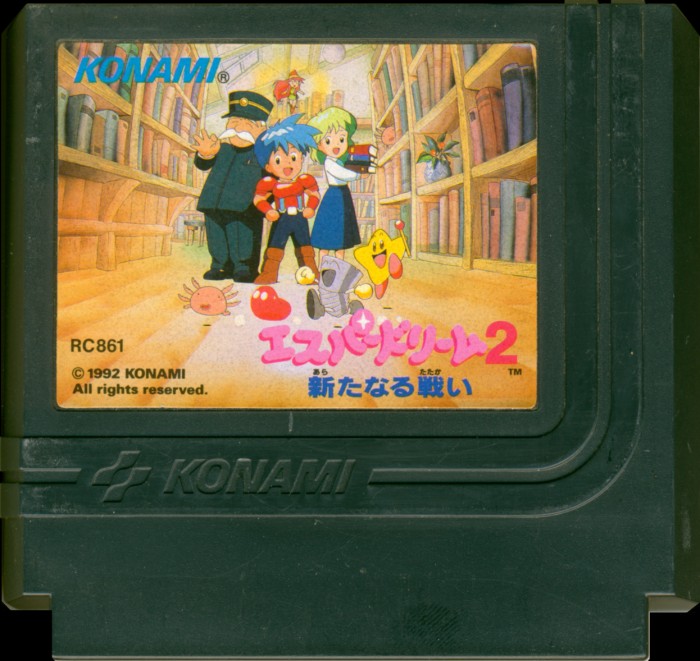

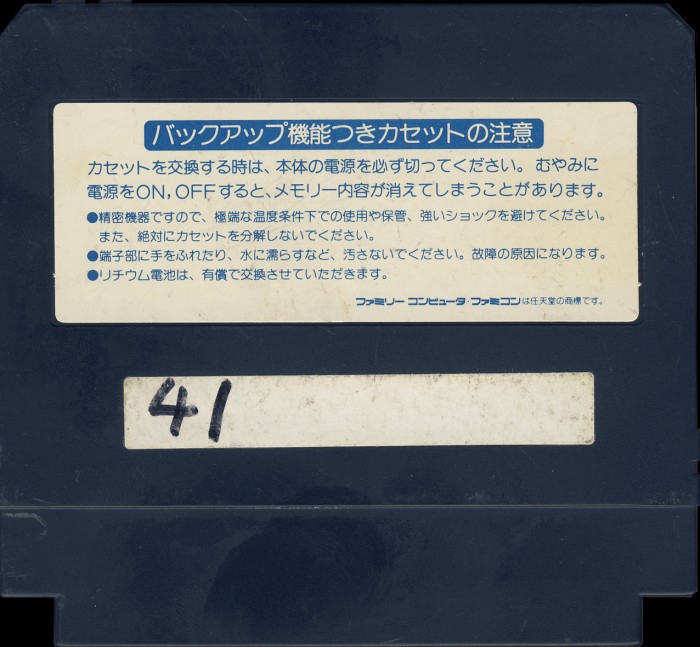

Cart Properties
| Cart Producer | Konami |
|---|---|
| Color | Black |
| Form Factor | Large |
| Embossed Text | |
| Front Label ID | RC861 |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

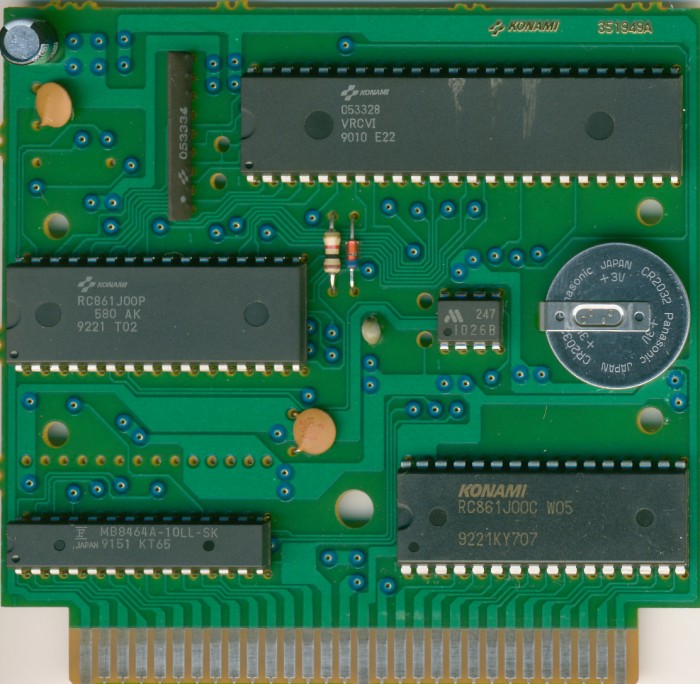

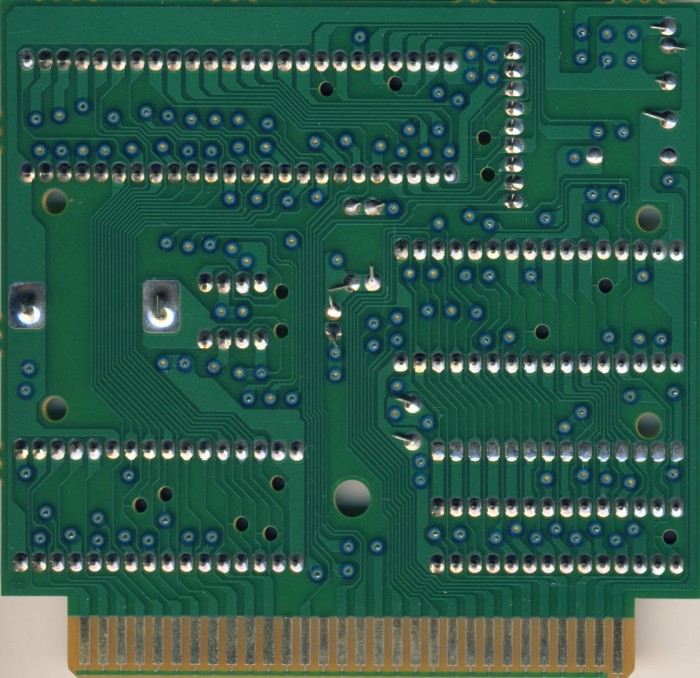

PCB Properties
| Name | 351949A |
|---|---|
| PCB Producer | Konami |
| Manufacturer | Not Specified |
| Mfg Range | 9221 |
| Est First Run | May 1992 |
| PCB Class | KONAMI-VRC-6 |
| iNES Mapper | 26 |
| Mirroring | Mapper Ctrl |
| Battery present | Yes |
| WRAM | 8 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | MM1026, VRC6 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | RC861J00P | 256 KB | 30E64D03 | 1 |
| CHR0 | RC861J00C | 128 KB | F9C6BDF7 | 1 |
| N/A | ROMs Combined | 384 KB | 209B4BED | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| Fujitsu | MB832000 | Mask ROM 256 KB | DIP-32 | 9221 T02 | 9221 | ||
| NEC | UPD23C1013 | Mask ROM 128 KB | DIP-32 | 9221 KY707 | 9221 | ||
| Fujitsu | MB8464A-10LL-SK | SRAM 8 KB | SDIP-28 | 9151 KT65 | 9151 | ||
| Fujitsu | 053328 VRC VI | Konami VRC VI | DIP-48 | 9010 E22 | 9010 | ||
| Mitsumi | 1026B | MM1026 | DIP-8 | 24 7 | 9214 |
