Release Info
| Catalog ID |
JF-15 |
| Region |
Japan (NTSC) |
| Class |
Licensed » 3rd-Party |
| Release Date |
October 13, 1987 |
| Publisher |
Jaleco |
| Developer |
NMK |
| Players |
1 |
| Peripherals |
Famicom Controller |

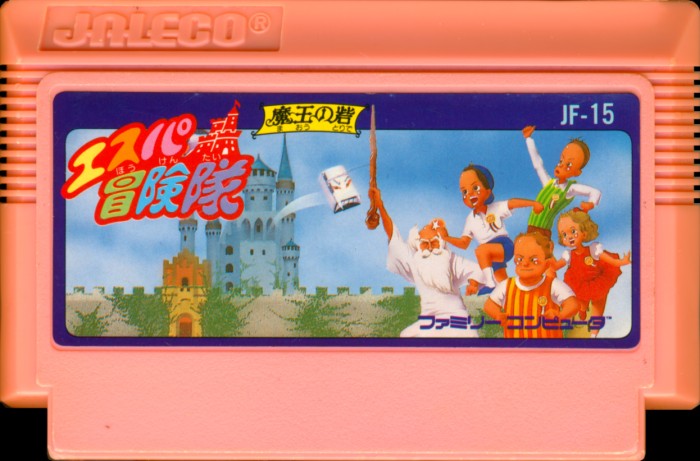

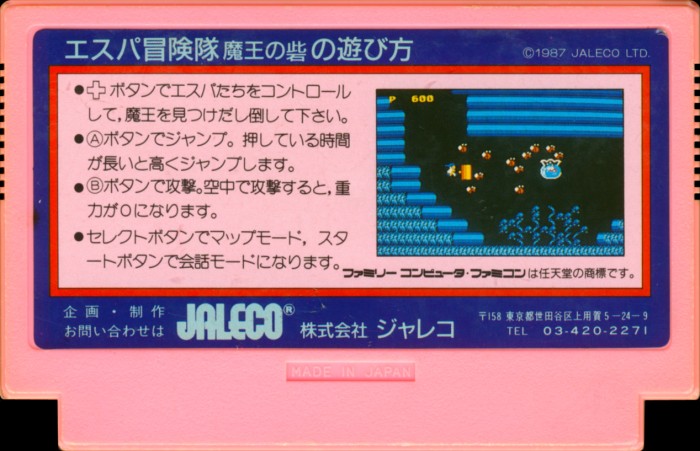

Cart Properties
| Cart Producer |
Jaleco |
| Color |
Salmon |
| Form Factor |
Small |
| Embossed Text |
Made in Japan |
| Front Label ID |
JF-15 |
| Seal of Quality |
|
| MfgString Present |
|
| 2-digit Code |
|
PCB Properties
| Name |
JF-15 |
| PCB Producer |
Jaleco |
| Manufacturer |
Not Specified |
| Mfg Range |
8741 |
| Est First Run |
October 1987 |
| PCB Class |
JALECO-JF-15 |
| iNES Mapper |
2 |
| Mirroring |
Vertical |
| Battery present |
No |
| WRAM |
0 KB |
| VRAM |
8 KB |
| CIC Type |
None |
| Hardware |
74xx161, 74xx32 |
ROM Details
| Type |
Label |
Size |
CRC32 |
x ! |
| PRG0 |
JF-15 PRG |
256 KB |
7B0A41B9 |
1 |
Detailed Chip Info
| Designation |
Maker |
Part # |
Type |
Package |
Date Code |
Std |
Misc |
|
Sharp |
LH5321
|
Mask ROM
256 KB
|
DIP-32 |
8741
D
|
8741 |
|
| 6264 |
NEC |
D4364CX-15L
|
SRAM
8 KB
|
SDIP-28 |
8635
X9204
|
8635 |
|
| HC161 |
Sharp |
LR74HC161
|
74-161 Series
|
DIP-16 |
8726
CA
|
8726 |
|
| HC32 |
Mitsubishi |
M74HC32P
|
74-32 Series
|
DIP-14 |
735
1A0
|
8735 |
|
