Release Info
| Catalog ID | HCT-9A/011 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | July 5, 1991 |
| Publisher | Hect |
| Developer | Hect |
| Players | 2 |
| Peripherals | Famicom Controller |

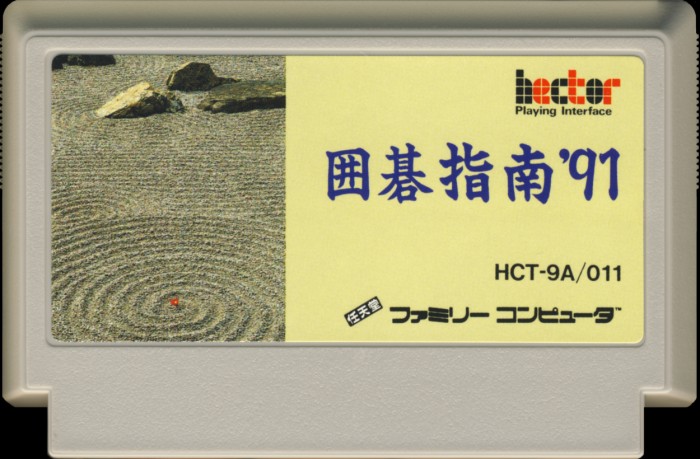

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Light Grey |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | HCT-9A |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 00 |

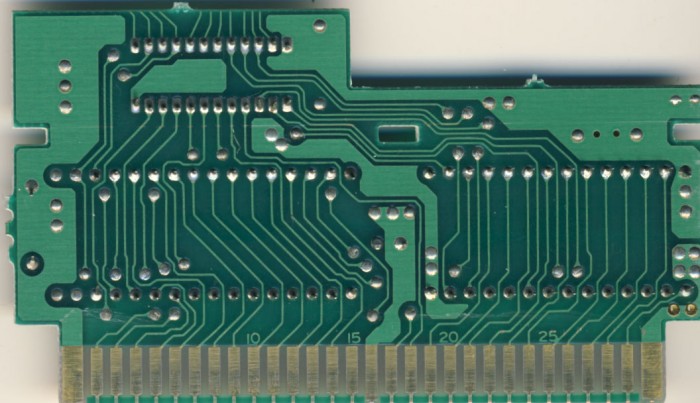

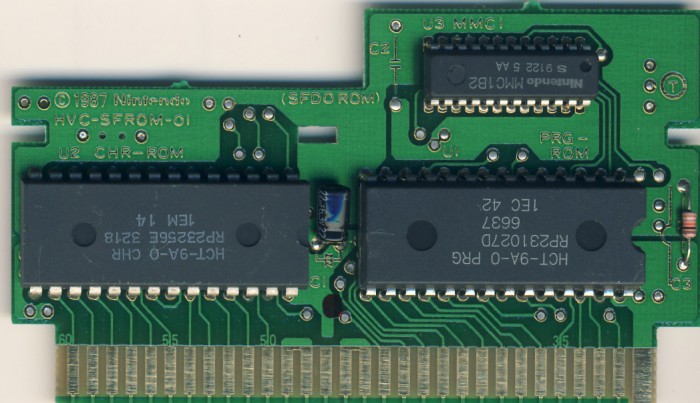

PCB Properties
| Name | HVC-SFROM-01 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9122 |
| Est First Run | June 1991 |
| PCB Class | HVC-SFROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | MMC1B2 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | HCT-9A-0 PRG | 128 KB | BE00966B | 1 |
| CHR0 | HCT-9A-0 CHR | 32 KB | 267DAF97 | 1 |
| N/A | ROMs Combined | 160 KB | E333FFA1 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG-ROM | Ricoh | RP231027D 6637 | Mask ROM 128 KB | DIP-28 | 1EC 42 | 9119 | |
| U2 CHR-ROM | Ricoh | RP23256E 3218 | Mask ROM 32 KB | DIP-28 | 1EM 14 | 9120 | |
| U3 MMC1 | Sharp | MMC1B2 | Nintendo MMC1 | DIP-24 | 9122 5 AA | 9122 |
