Release Info
| Catalog ID | BPS-IG |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | August 11, 1987 |
| Publisher | Bullet-Proof Software |
| Developer | Edge Computers |
| Players | 2 |
| Peripherals | Famicom Controller |

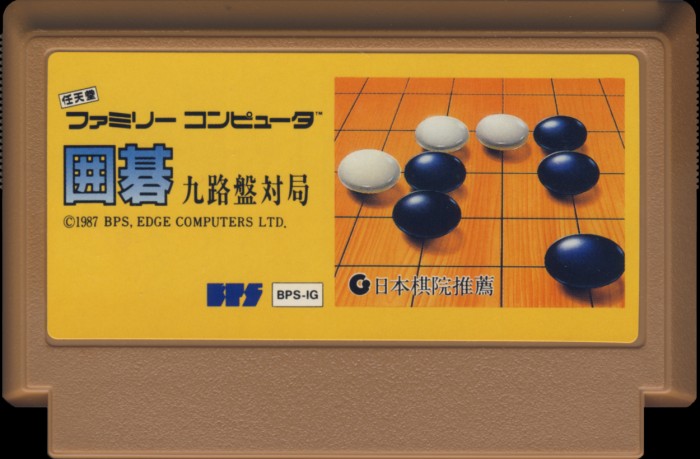

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Brown |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | BPS-IG |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 11 |

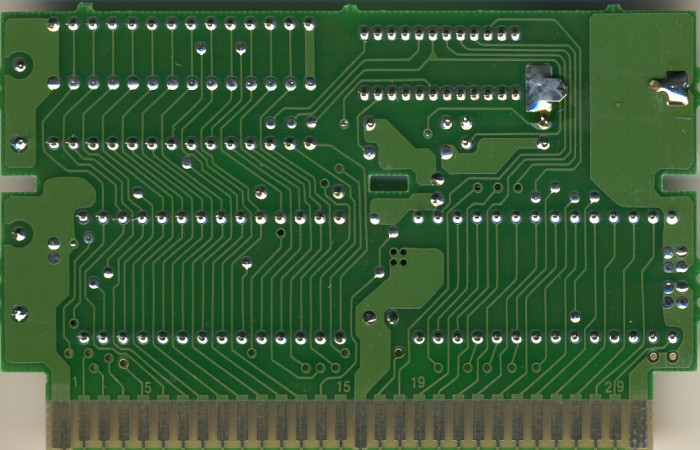

PCB Properties
| Name | HVC-SIROM-02 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9109 |
| Est First Run | March 1991 |
| PCB Class | HVC-SIROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | Yes |
| WRAM | 8 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | MMC1B2 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | BPS-IG-0 PRG | 32 KB | B37F48CD | 1 |
| CHR0 | BPS-IG-0 CHR | 16 KB | C9DAFBCB | 1 |
| N/A | ROMs Combined | 48 KB | 9B208AB1 | 1 |

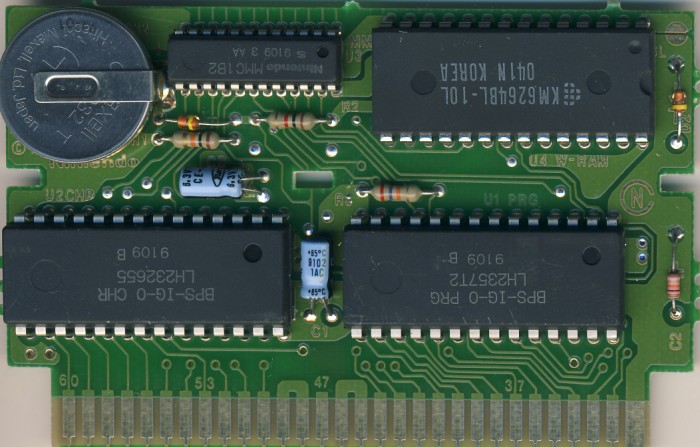

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Sharp | LH2357 T2 | Mask ROM 32 KB | DIP-28 | 9109 B | 9109 | |
| U2 CHR | Sharp | LH2326 55 | Mask ROM 16 KB | DIP-28 | 9109 B | 9109 | |
| U3 MMC1 | Sharp | MMC1B2 | Nintendo MMC1 | DIP-24 | 9109 3 AA | 9109 | |
| U4 W-RAM | Samsung | KM6264BL-10L | SRAM 8 KB | DIP-28 | 041 N | 9041 |
