Release Info
| Catalog ID | BAP-N9 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | December 19, 1991 |
| Publisher | Banpresto |
| Developer | Winky Soft |
| Players | 1 |
| Peripherals | Famicom Controller |

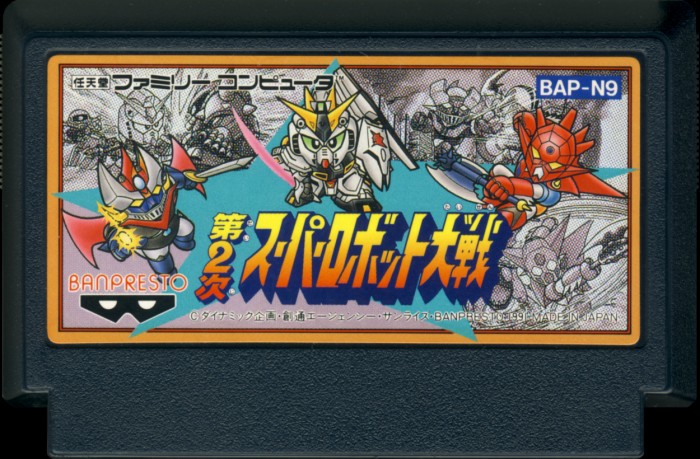

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Black |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | BAP-N9 |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

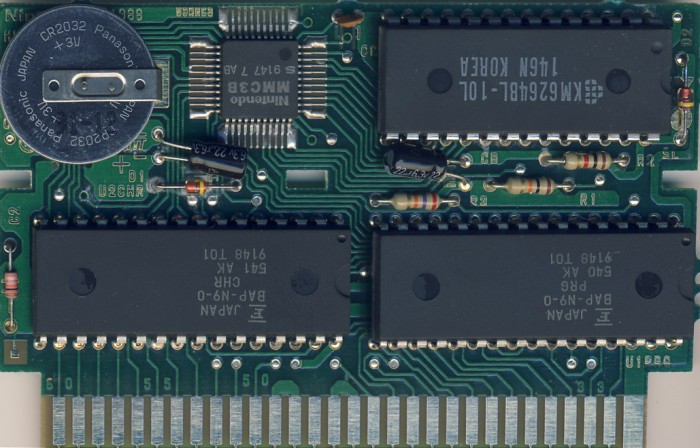

PCB Properties
| Name | HVC-TKROM-03 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9148 |
| Est First Run | December 1991 |
| PCB Class | HVC-TKROM |
| iNES Mapper | 4 |
| Mirroring | Mapper Ctrl |
| Battery present | Yes |
| WRAM | 8 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | MMC3B |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | BAP-N9-0 PRG | 256 KB | C5FEA9F2 | 1 |
| CHR0 | BAP-N9-0 CHR | 256 KB | DD364EF1 | 1 |
| N/A | ROMs Combined | 512 KB | C48363B4 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Fujitsu | MB832000 | Mask ROM 256 KB | DIP-32 | 9148 T01 | 9148 | |
| U2 CHR | Fujitsu | MB832000 | Mask ROM 256 KB | DIP-32 | 9148 T01 | 9148 | |
| U3 MMC3 | Sharp | MMC3B | Nintendo MMC3 | TQFP-44 | 9147 7 AB | 9147 | |
| U4 W-RAM | Samsung | KM6264BL-10L | SRAM 8 KB | DIP-28 | 146 N | 9146 |
