Release Info
| Catalog ID | KOE-QK |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | March 15, 1991 |
| Publisher | Koei |
| Developer | Koei |
| Players | 1 |
| Peripherals | Famicom Controller |

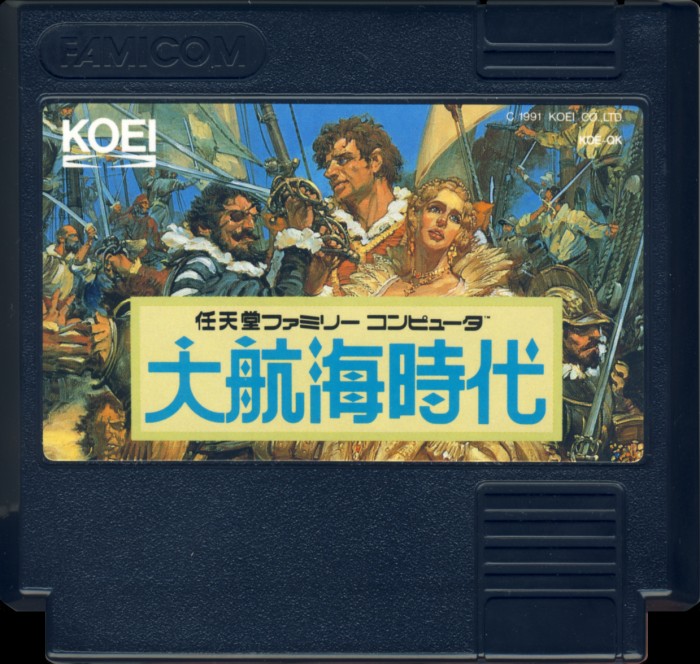

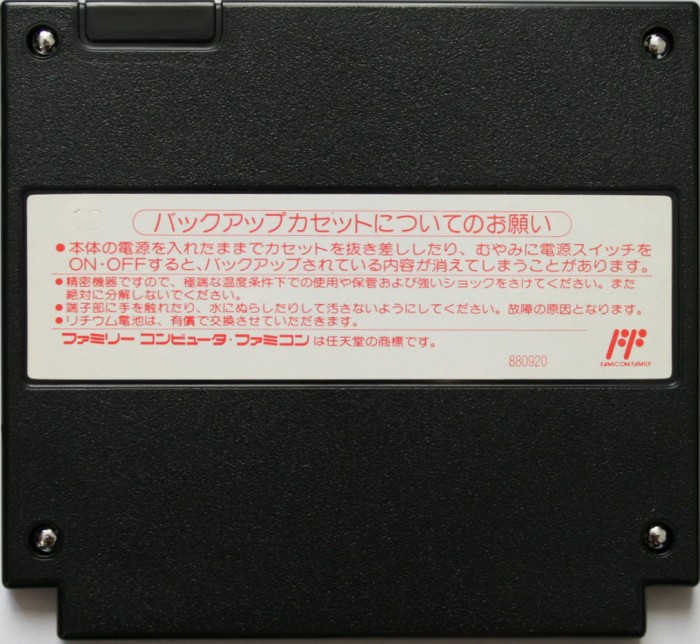

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Black |
| Form Factor | Large w/ Famicom Logo |
| Embossed Text | |
| Front Label ID | KOE-QK |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 00 |

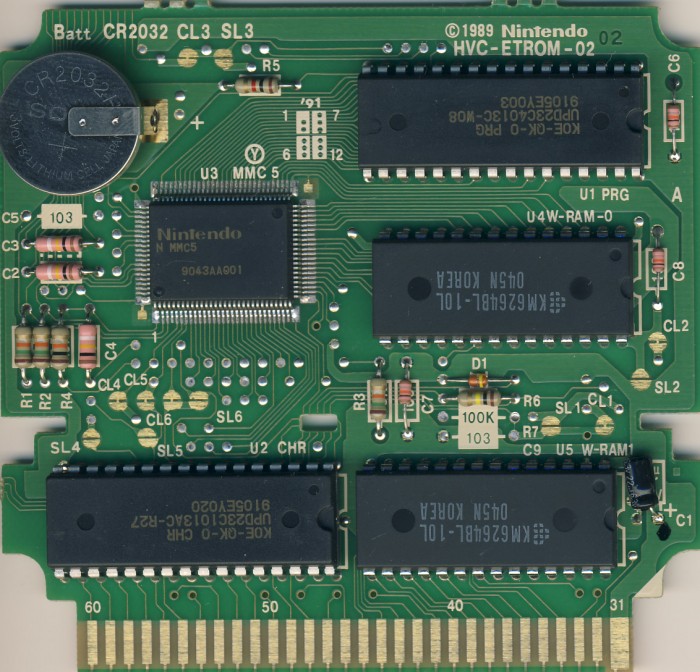

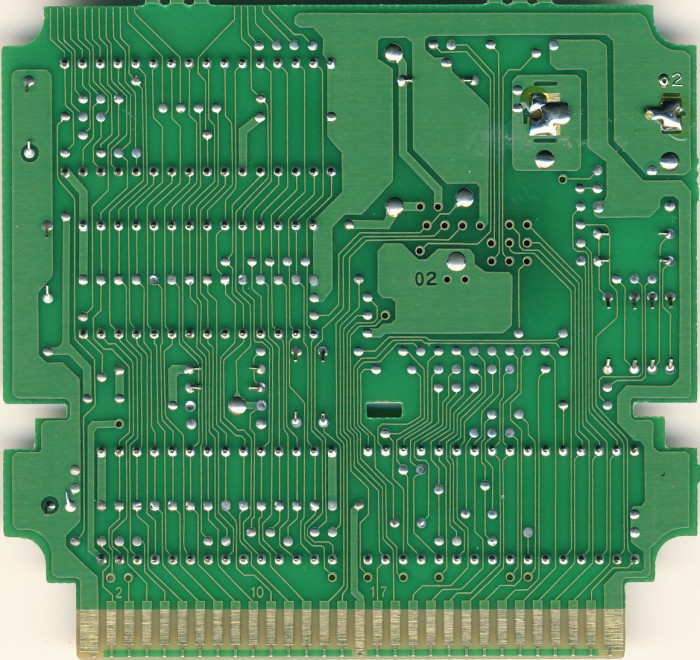

PCB Properties
| Name | HVC-ETROM-02 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9105 |
| Est First Run | February 1991 |
| PCB Class | HVC-ETROM |
| iNES Mapper | 5 |
| Mirroring | Mapper Ctrl |
| Battery present | Yes |
| WRAM | 16 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | MMC5 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | KOE-QK-0 PRG | 512 KB | F4CD4998 | 1 |
| CHR0 | KOE-QK-0 CHR | 128 KB | 54BEF15B | 1 |
| N/A | ROMs Combined | 640 KB | FE3488D1 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | NEC | UPD23C4013C W08 | Mask ROM 512 KB | DIP-32 | 9105 EY003 | 9105 | |
| U2 CHR | NEC | UPD23C1013AC R27 | Mask ROM 128 KB | DIP-32 | 9105 EY020 | 9105 | |
| U3 MMC5 | NEC | MMC5 | Nintendo MMC5 | PQFP-100 | 9043 AA001 | 9043 | |
| U4 W-RAM-0 | Samsung | KM6264BL-10L | SRAM 8 KB | DIP-28 | 045 N | 9045 | |
| U5 W-RAM-1 | Samsung | KM6264BL-10L | SRAM 8 KB | DIP-28 | 045 N | 9045 |
