Release Info
| Catalog ID | IMX-NB |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | February 14, 1992 |
| Publisher | I'Max |
| Developer | Use |
| Players | 1 |
| Peripherals | Famicom Controller |

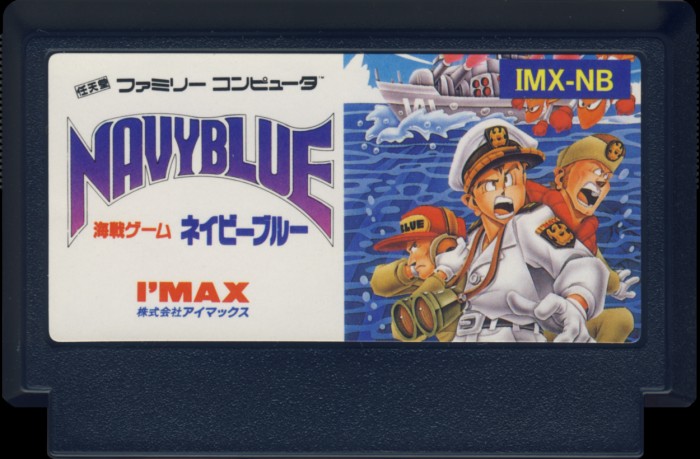

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Black |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | IMX-NB |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 00 |
PCB Properties
| Name | HVC-SNROM-09 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9202 |
| Est First Run | January 1992 |
| PCB Class | HVC-SNROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 8 KB |
| VRAM | 8 KB |
| CIC Type | None |
| Hardware | MMC1B2 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | IMX-NB-0 PRG | 128 KB | 69BCDB8B | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Ricoh | RP231027D 6668 | Mask ROM 128 KB | DIP-28 | 1MC 41 | 9149 | |
| U2 CHR | NEC | 64S20 | SRAM 8 KB | DIP-28 | 9131 EJ | 9131 | |
| U3 MMC1 | Sharp | MMC1B2 | Nintendo MMC1 | DIP-24 | 9202 1 A 170 | 9202 | |
| U4 W-RAM | NEC | 64S20 | SRAM 8 KB | DIP-28 | 9131 EJ | 9131 |
