Release Info
| Catalog ID | TJC-NA |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | December 23, 1992 |
| Publisher | Technos |
| Developer | Technos |
| Players | 2 |
| Peripherals | Famicom Controller |

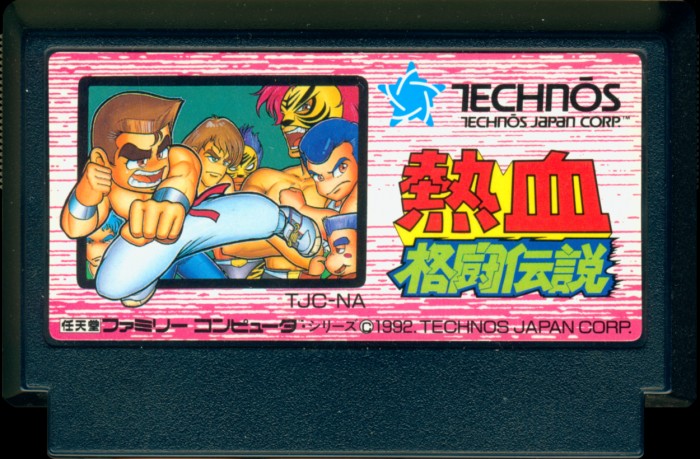

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Black |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | TJC-NA |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 12 |

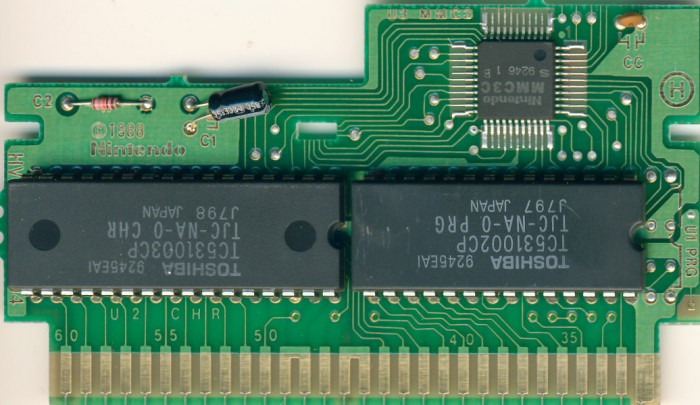

PCB Properties
| Name | HVC-TLROM-04 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9246 |
| Est First Run | November 1992 |
| PCB Class | HVC-TLROM |
| iNES Mapper | 4 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | MMC3C |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | TJC-NA-0 PRG | 128 KB | 85C5B6B4 | 1 |
| CHR0 | TJC-NA-0 CHR | 128 KB | 0CAD2771 | 1 |
| N/A | ROMs Combined | 256 KB | 37E24797 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Toshiba | TC531002CP J797 | Mask ROM 128 KB | DIP-28 | 9245 EAI | 9245 | |
| U2 CHR | Toshiba | TC531003CP J798 | Mask ROM 128 KB | DIP-32 | 9245 EAI | 9245 | |
| U3 MMC3 | Sharp | MMC3C | Nintendo MMC3 | TQFP-44 | 9246 1 B | 9246 |
