Release Info
| Catalog ID | JF-16 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | November 6, 1987 |
| Publisher | Jaleco |
| Developer | TOSE Software |
| Players | 1 |
| Peripherals | Famicom Controller |

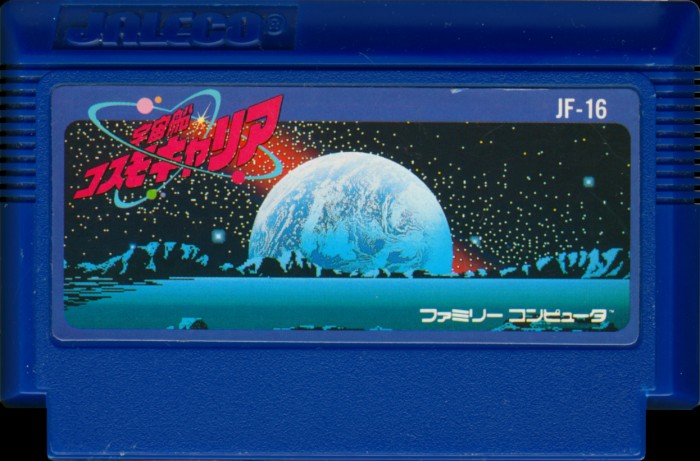

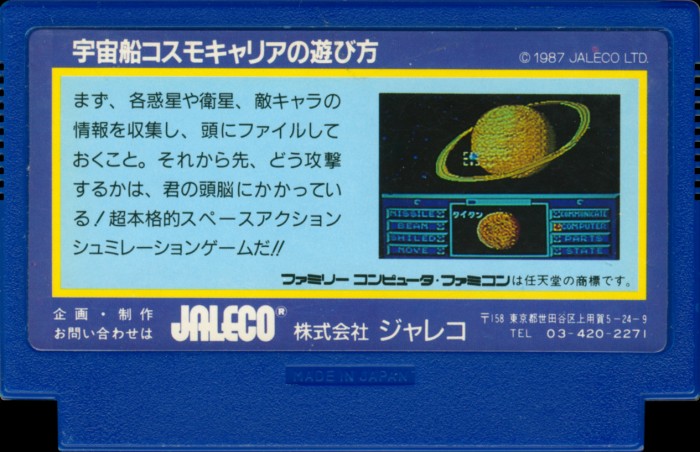

Cart Properties
| Cart Producer | Jaleco |
|---|---|
| Color | Blue |
| Form Factor | Small |
| Embossed Text | Made in Japan |
| Front Label ID | JF-16 |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

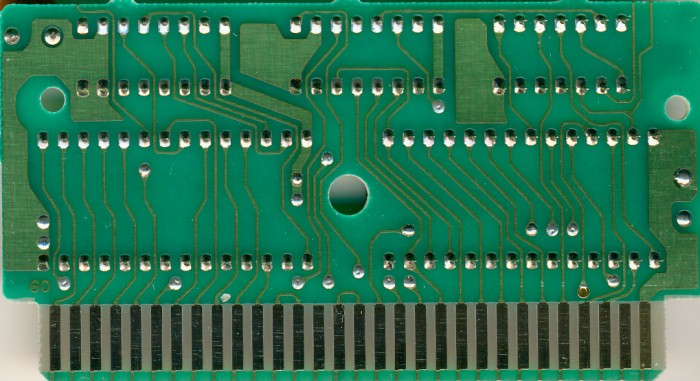

PCB Properties
| Name | JF-16 |
|---|---|
| PCB Producer | Jaleco |
| Manufacturer | Not Specified |
| Mfg Range | 8748 |
| Est First Run | December 1987 |
| PCB Class | JALECO-JF-16 |
| iNES Mapper | 78 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | 74xx161, 74xx161, 74xx32 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | JF-16 PRG | 128 KB | 42392440 | 1 |
| CHR0 | JF-16 CHR | 128 KB | CFFEE642 | 1 |
| N/A | ROMs Combined | 256 KB | 3D1C3137 | 1 |

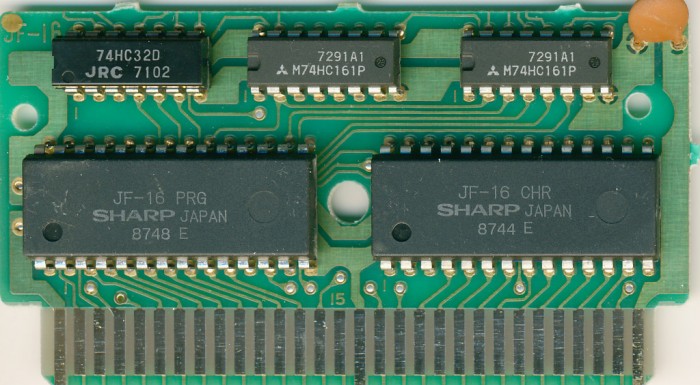

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| Sharp | LH2310 | Mask ROM 128 KB | DIP-28 | 8748 E | 8748 | ||
| Sharp | LH2310 | Mask ROM 128 KB | DIP-28 | 8744 E | 8744 | ||
| JRC | 74HC32D | 74-32 Series | DIP-14 | 710 2 | 8710 | ||
| Mitsubishi | M74HC161P | 74-161 Series | DIP-16 | 729 1A1 | 8729 | ||
| Mitsubishi | M74HC161P | 74-161 Series | DIP-16 | 729 1A1 | 8729 |
