Release Info
| Catalog ID | NES-UL-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | February 1989 |
| Publisher | FCI |
| Developer | Origin Systems |
| Players | 1 |
| Peripherals | NES Controller |

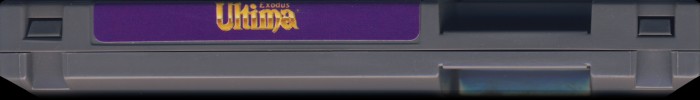

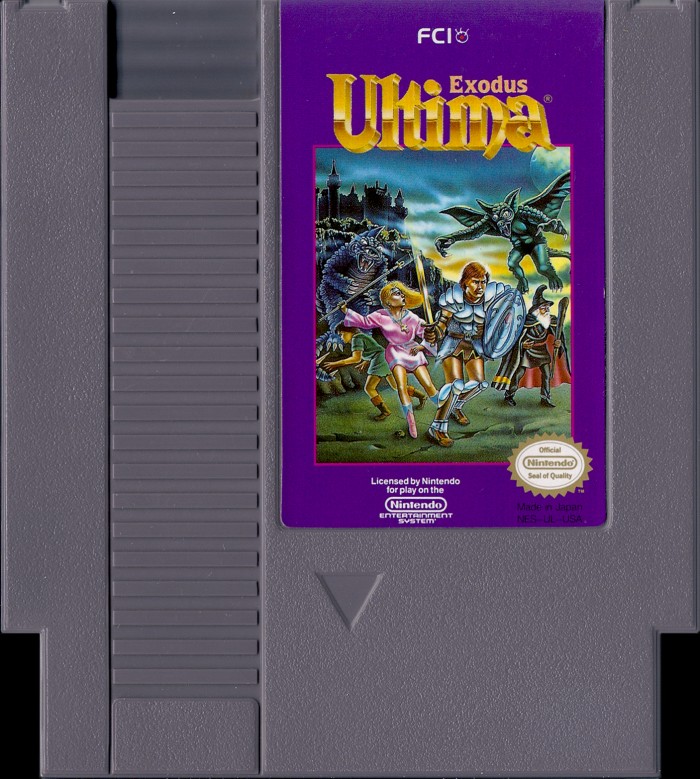

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-UL-USA |
| Seal of Quality | Oval (TM) |
| MfgString Present | Yes |
| 2-digit Code | 28 |
PCB Properties
| Name | NES-SNROM-03 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8933 - 8947 (2) |
| Est First Run | August 1989 |
| PCB Class | NES-SNROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | Yes |
| WRAM | 8 KB |
| VRAM | 8 KB |
| CIC Type | 6113A |
| Hardware | MMC1B2 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-UL-0 PRG | 256 KB | A4062017 | 3 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PRG | NEC | UPD23C2013 | Mask ROM 256 KB | DIP-32 | 8928 PY | 8928 | |
| CHR | NEC | 64S20 | SRAM 8 KB | DIP-28 | 8932 M5 | 8932 | |
| Sharp | 6113A | Nintendo CIC | DIP-16 | 8933 7 BA | 8933 | ||
| Sharp | MMC1B2 | Nintendo MMC1 | DIP-24 | 8927 7 A | 8927 | ||
| Sharp | LH5264T-L | SRAM 8 KB | DIP-28 | 8932 7 Y | 8932 |
