Release Info
| Catalog ID | JF-12 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | May 19, 1987 |
| Publisher | Jaleco |
| Developer | TOSE Software |
| Players | 1 |
| Peripherals | Famicom Controller |

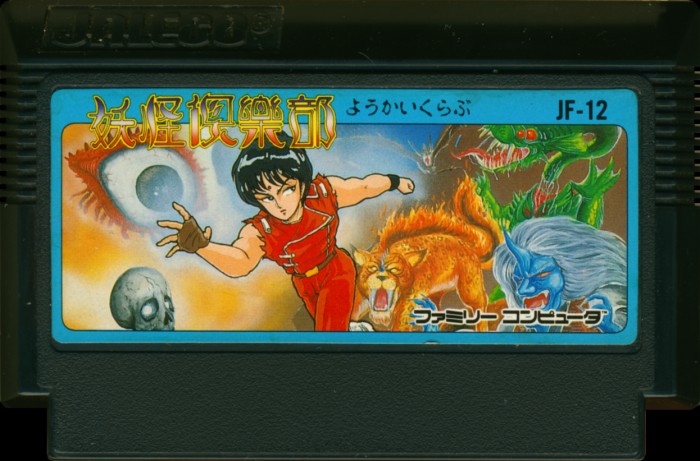

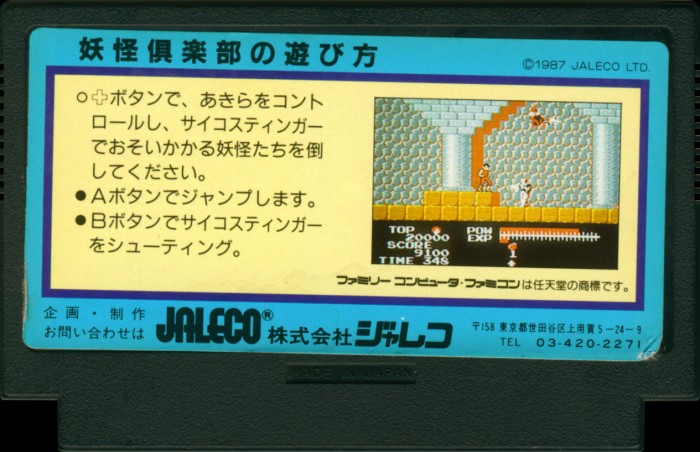

Cart Properties
| Cart Producer | Jaleco |
|---|---|
| Color | Black |
| Form Factor | Small |
| Embossed Text | Made in Japan |
| Front Label ID | JF-12 |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

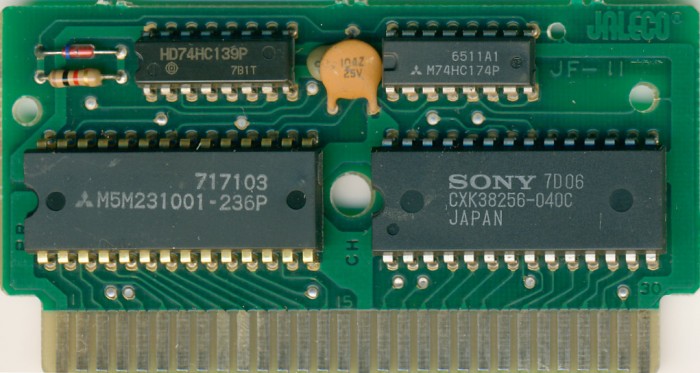

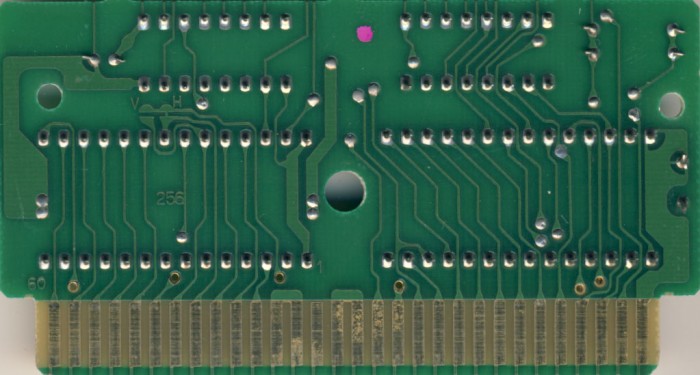

PCB Properties
| Name | JF-11 |
|---|---|
| PCB Producer | Jaleco |
| Manufacturer | Not Specified |
| Mfg Range | 8717 |
| Est First Run | April 1987 |
| PCB Class | JALECO-JF-11 |
| iNES Mapper | 140 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | 74xx139, 74xx174 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | Not Present | 128 KB | 5A4026C8 | 1 |
| CHR0 | Not Present | 32 KB | E78F301D | 1 |
| N/A | ROMs Combined | 160 KB | 6BC65D7E | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PR | Mitsubishi | M5M231001 236P | Mask ROM 128 KB | DIP-28 | 717 103 | 8717 | |
| CH | Sony | CXK38256 040C | Mask ROM 32 KB | DIP-28 | 7D 06 | 8714 | |
| Hitachi | HD74HC139P | 74-139 Series | DIP-16 | 7B1 T | 8706 | ||
| Mitsubishi | M74HC174P | 74-174 Series | DIP-16 | 651 1A1 | 8651 |
