Release Info
| Catalog ID | NAM-YD-4900 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | June 24, 1988 |
| Publisher | Namco |
| Developer | Now Production |
| Players | 1 |
| Peripherals | Famicom Controller |

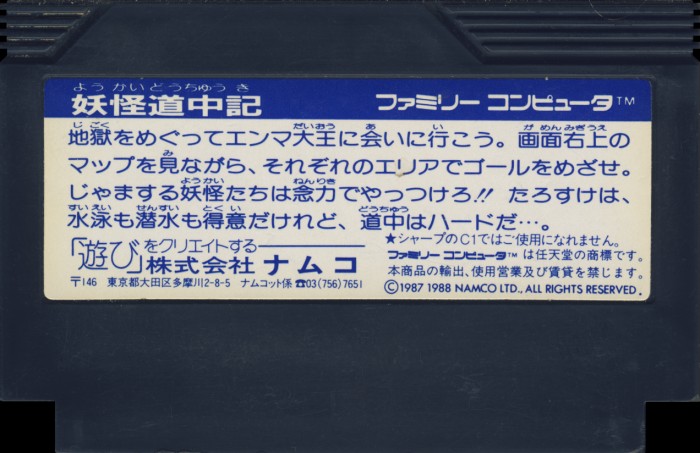

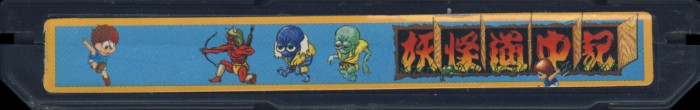

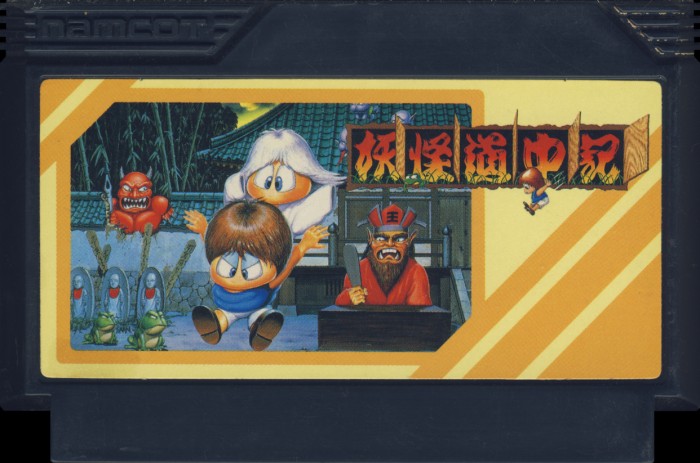

Cart Properties
| Cart Producer | |
|---|---|
| Color | Black |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | Not Present |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

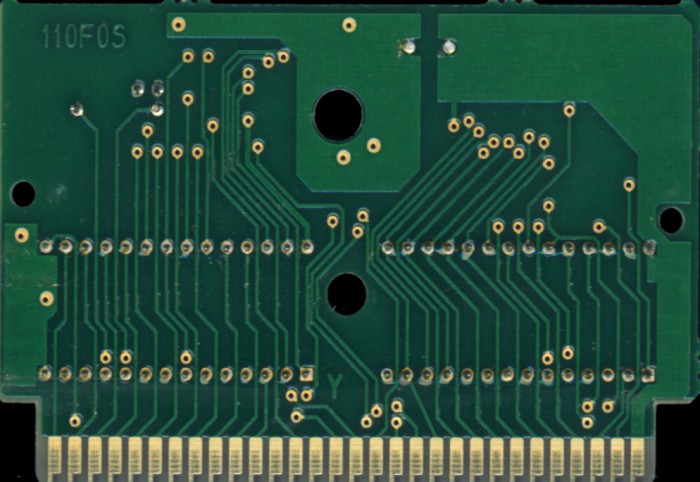

PCB Properties
| Name | 111F0S |
|---|---|
| PCB Producer | |
| Manufacturer | Not Specified |
| Mfg Range | 8816 - 8818 (3) |
| Est First Run | April 1988 |
| PCB Class | NAMCOT-163 |
| iNES Mapper | 19 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | 163 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NAMCOT YD PRG | 128 KB | 17421900 | 3 |
| CHR0 | NAMCOT YD CHR | 128 KB | 0229471A | 3 |
| N/A | ROMs Combined | 256 KB | C811DC7A | 3 |

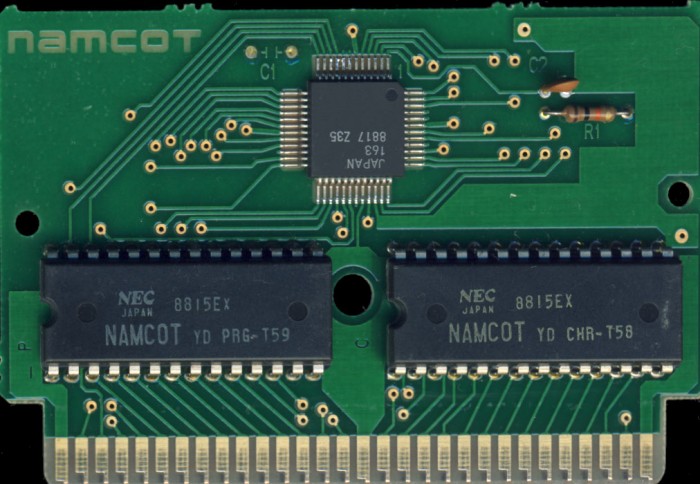

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| P | NEC | UPD23C1010 | Mask ROM 128 KB | DIP-28 | 8815 EX | 8815 | |
| C | NEC | UPD23C1010 | Mask ROM 128 KB | DIP-28 | 8815 EX | 8815 | |
| Fujitsu | 163 | Namcot 163 | TQFP-48 | 8817 Z35 | 8817 |
