Release Info
| Catalog ID |
KSC-SI |
| Region |
Japan (NTSC) |
| Class |
Licensed |
| Release Date |
March 27, 1987 |
| Publisher |
Kemco |
| Developer |
First Star Software |
| Players |
2 |
| Peripherals |
Famicom Controller |

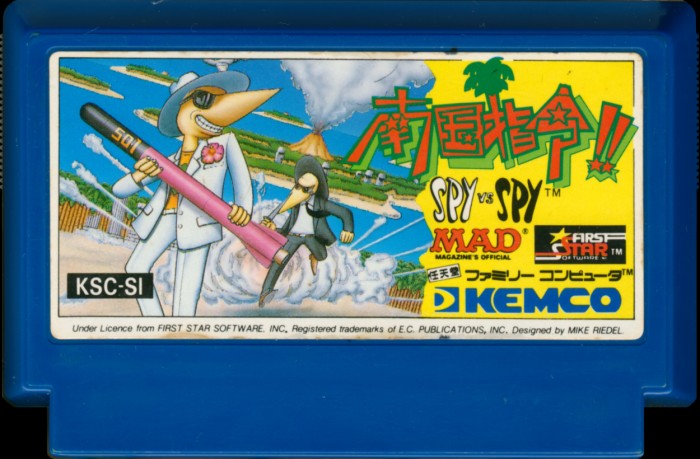

Cart Properties
| Cart Producer |
Nintendo (Famicom) |
| Color |
Dark Blue |
| Form Factor |
Small |
| Embossed Text |
|
| Front Label ID |
KSC-SI |
| Seal of Quality |
|
| MfgString Present |
|
| 2-digit Code |
11 |
PCB Properties
| Name |
HVC-UNROM-02 |
| PCB Producer |
Nintendo |
| Manufacturer |
Not Specified |
| Mfg Range |
8712 |
| Est First Run |
March 1987 |
| PCB Class |
HVC-UNROM |
| iNES Mapper |
2 |
| Mirroring |
Vertical |
| Battery present |
No |
| WRAM |
0 KB |
| VRAM |
8 KB |
| CIC Type |
None |
| Hardware |
74xx161, 74xx32 |
ROM Details
| Type |
Label |
Size |
CRC32 |
x ! |
| PRG0 |
KSC-SI-0 PRG |
128 KB |
10D62149 |
1 |
Detailed Chip Info
| Designation |
Maker |
Part # |
Type |
Package |
Date Code |
Std |
Misc |
| PRG ROM |
Ricoh |
RP231024D
0210
|
Mask ROM
128 KB
|
DIP-28 |
7C3
A6
|
8712 |
|
| CHR RAM |
Fujitsu |
MB8464-15L
|
SRAM
8 KB
|
DIP-28 |
8644
R02
|
8644 |
BA |
| LS161 |
Toshiba |
TC74HC161P
|
74-161 Series
|
DIP-16 |
8704
H
|
8704 |
|
| LS32 |
Toshiba |
TC74HC32P
|
74-32 Series
|
DIP-14 |
8643
H
|
8643 |
|
Additional Images
PCB Images
