Release Info
| Catalog ID | SUN-NTB-5900 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | October 26, 1990 |
| Publisher | Sunsoft |
| Developer | Sunsoft |
| Players | 2 |
| Peripherals | Famicom Controller |

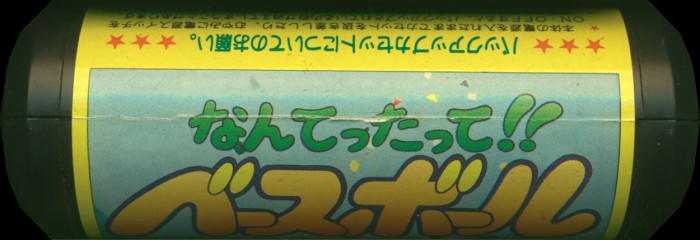

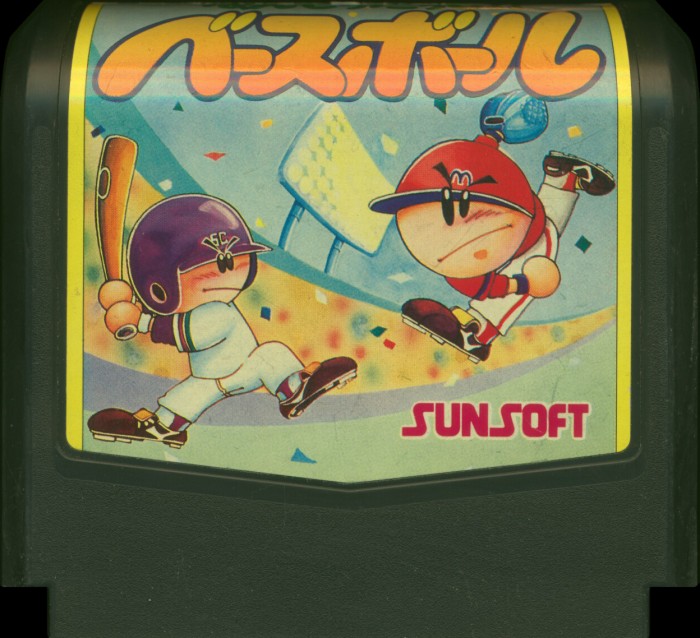

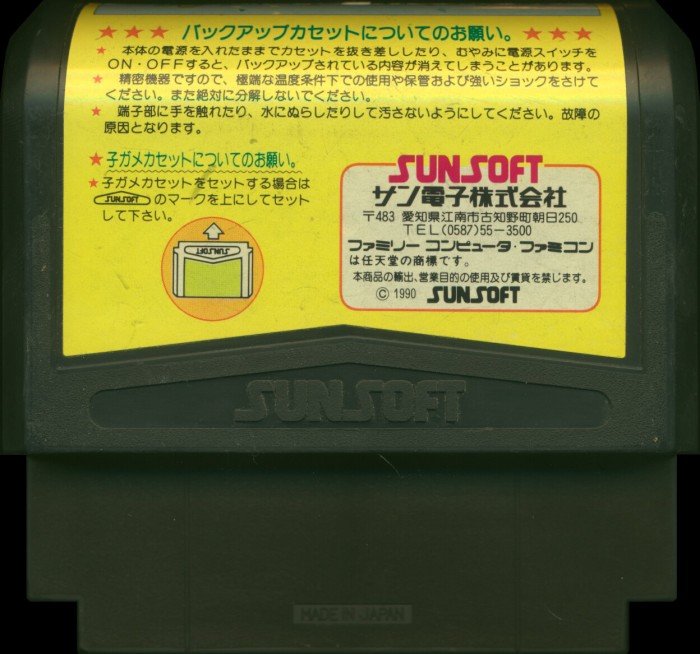

Cart Properties
| Cart Producer | Sunsoft |
|---|---|
| Color | Black |
| Form Factor | Dual Cassette |
| Embossed Text | Made in Japan |
| Front Label ID | |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

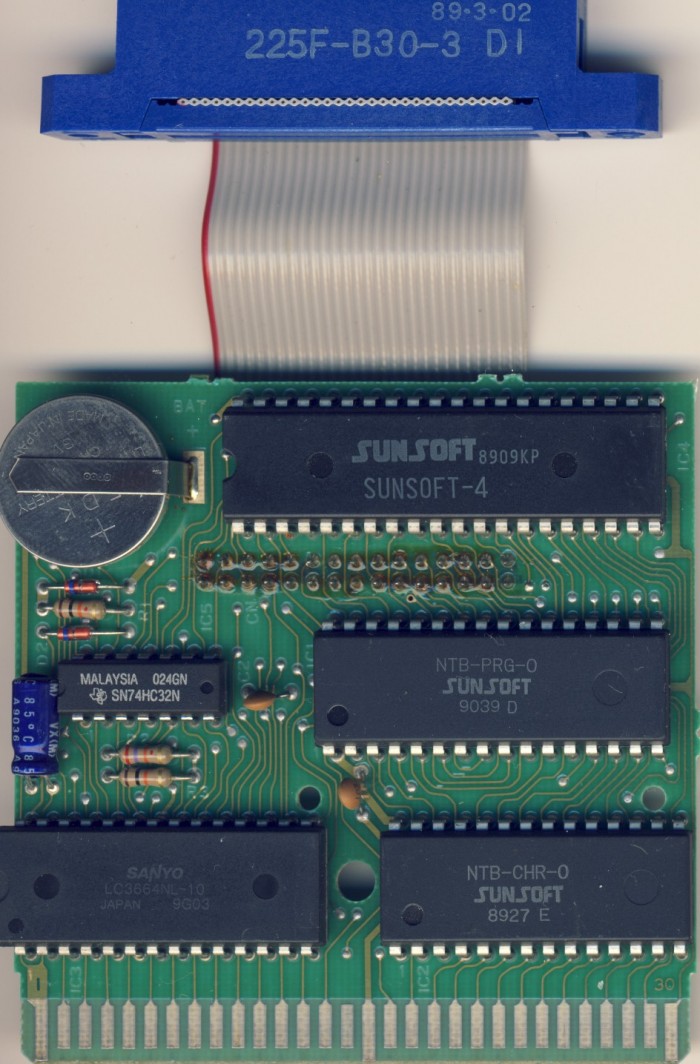

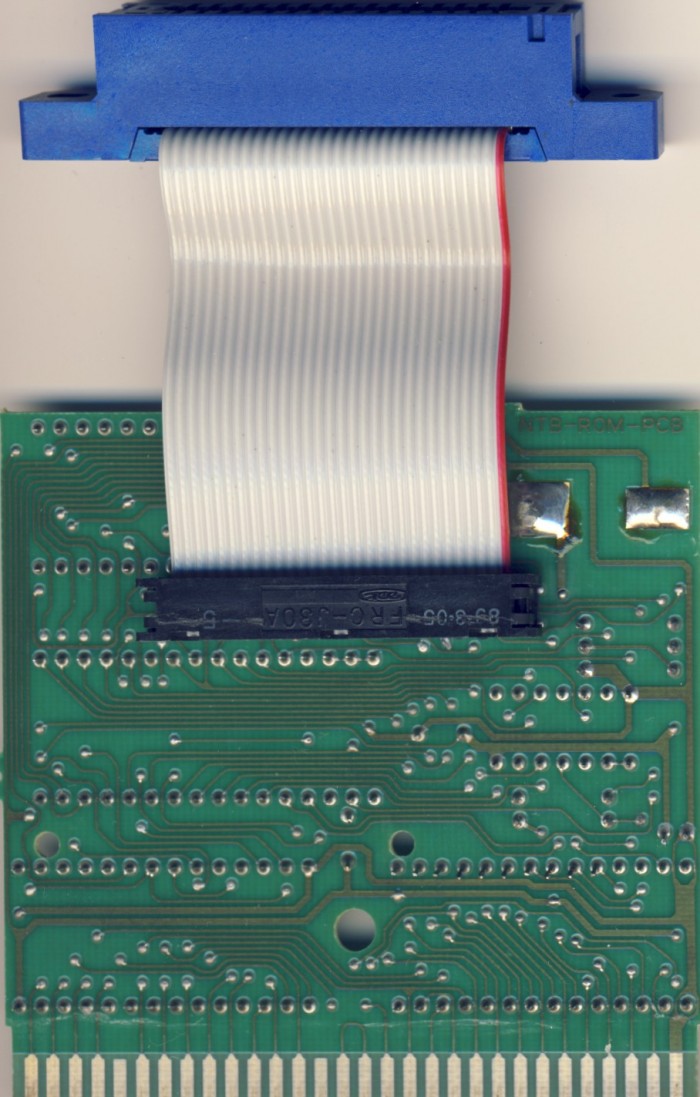

PCB Properties
| Name | NTB-ROM-PCB |
|---|---|
| PCB Producer | Sunsoft |
| Manufacturer | Not Specified |
| Mfg Range | 9039 - 9039 (2) |
| Est First Run | September 1990 |
| PCB Class | SUNSOFT-4 |
| iNES Mapper | 68 |
| Mirroring | Mapper Ctrl |
| Battery present | Yes |
| WRAM | 8 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | 74xx32, Sunsoft-4 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NTB-PRG-0 | 128 KB | BDDBC3B0 | 2 |
| CHR0 | NTB-CHR-0 | 128 KB | C70A7C8E | 2 |
| N/A | ROMs Combined | 256 KB | A2623BC1 | 2 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| IC1 | Sharp | LH2311 | Mask ROM 128 KB | DIP-32 | 9039 D | 9039 | |
| IC2 | Sharp | LH2310 | Mask ROM 128 KB | DIP-28 | 8927 E | 8927 | |
| IC3 | Sanyo | LC3664NL-10 | SRAM 8 KB | DIP-28 | 9G 03 | 8926 | |
| IC4 | NEC | SUNSOFT-4 | Sunsoft-4 | DIP-40 | 8909 KP | 8909 | |
| IC5 | Texas Instruments | SN74HC32N | 74-32 Series | DIP-14 | 024 GN | 9024 |
