Release Info
| Catalog ID | DTF-H9 (28) |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | December 8, 1989 |
| Publisher | Taito |
| Developer | Taito |
| Players | 1 |
| Peripherals | Famicom Controller |

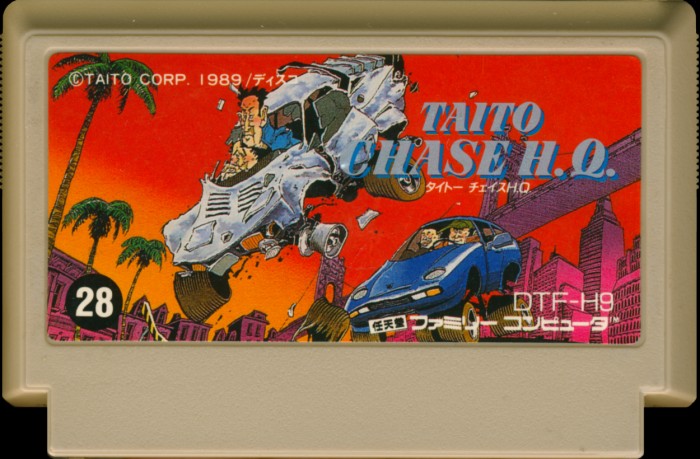

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Tan |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | DTF-H9 |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 09 |

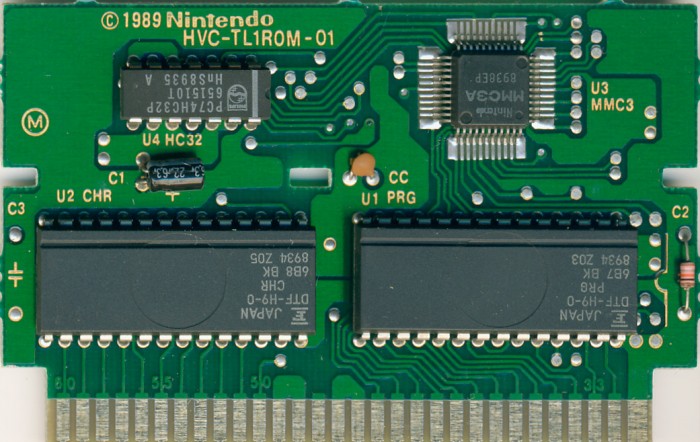

PCB Properties
| Name | HVC-TL1ROM-01 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8938 |
| Est First Run | September 1989 |
| PCB Class | HVC-TL1ROM |
| iNES Mapper | 4 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | 74xx32, MMC3A |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | DTF-H9-0 PRG | 128 KB | ECFD3C69 | 1 |
| CHR0 | DTF-H9-0 CHR | 128 KB | B74308DE | 1 |
| N/A | ROMs Combined | 256 KB | 99D38676 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Fujitsu | MB831002 | Mask ROM 128 KB | DIP-28 | 8934 Z03 | 8934 | |
| U2 CHR | Fujitsu | MB831002 | Mask ROM 128 KB | DIP-28 | 8934 Z05 | 8934 | |
| U3 MMC3 | NEC | MMC3A | Nintendo MMC3 | TQFP-44 | 8938 EP | 8938 | |
| U4 HC32 | Phillips | PC74HC32P | 74-32 Series | DIP-14 | 8935 HnS | 8935 | 651510T |
