Release Info
| Catalog ID | DTF-UJ (36) |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | April 26, 1991 |
| Publisher | Taito |
| Developer | Aicom |
| Players | 2 |
| Peripherals | Famicom Controller |

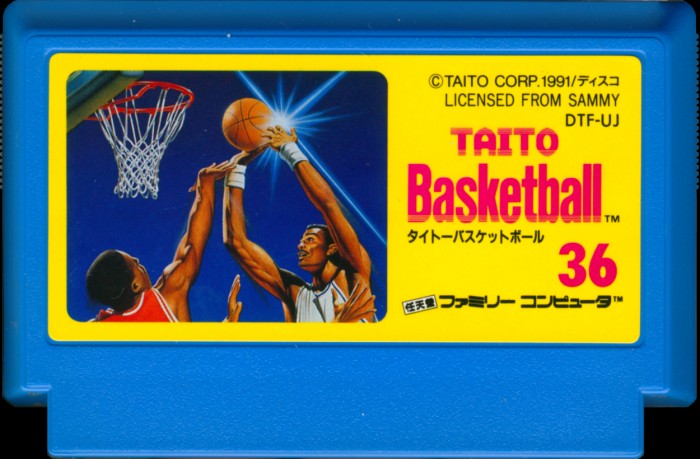

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Blue |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | DTF-UJ |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 09 |

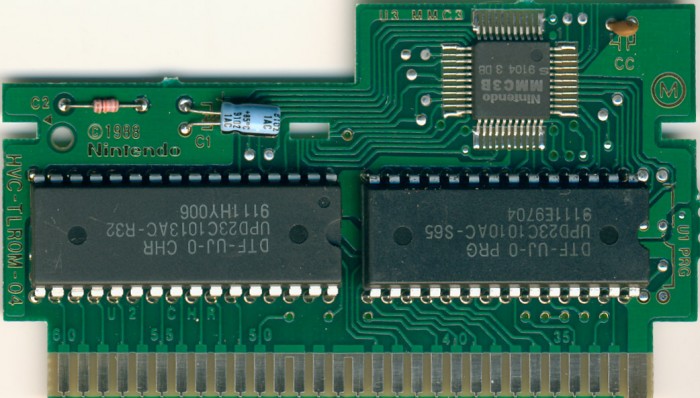

PCB Properties
| Name | HVC-TLROM-04 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9111 |
| Est First Run | March 1991 |
| PCB Class | HVC-TLROM |
| iNES Mapper | 4 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | MMC3B |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | DTF-UJ-0 PRG | 128 KB | 4DE477BE | 1 |
| CHR0 | DTF-UJ-0 CHR | 128 KB | 97F13D4C | 1 |
| N/A | ROMs Combined | 256 KB | 4F16C504 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | NEC | UPD23C1010AC S65 | Mask ROM 128 KB | DIP-28 | 9111 E9704 | 9111 | |
| U2 CHR | NEC | UPD23C1013AC R32 | Mask ROM 128 KB | DIP-32 | 9111 HY006 | 9111 | |
| U3 MMC3 | Sharp | MMC3B | Nintendo MMC3 | TQFP-44 | 9104 3 DB | 9104 |
