Release Info
| Catalog ID | NES-UB-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | March 1990 |
| Publisher | Culture Brain |
| Developer | Culture Brain |
| Players | 2 |
| Peripherals | NES Controller |

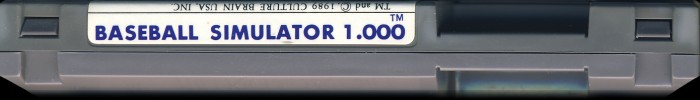

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |

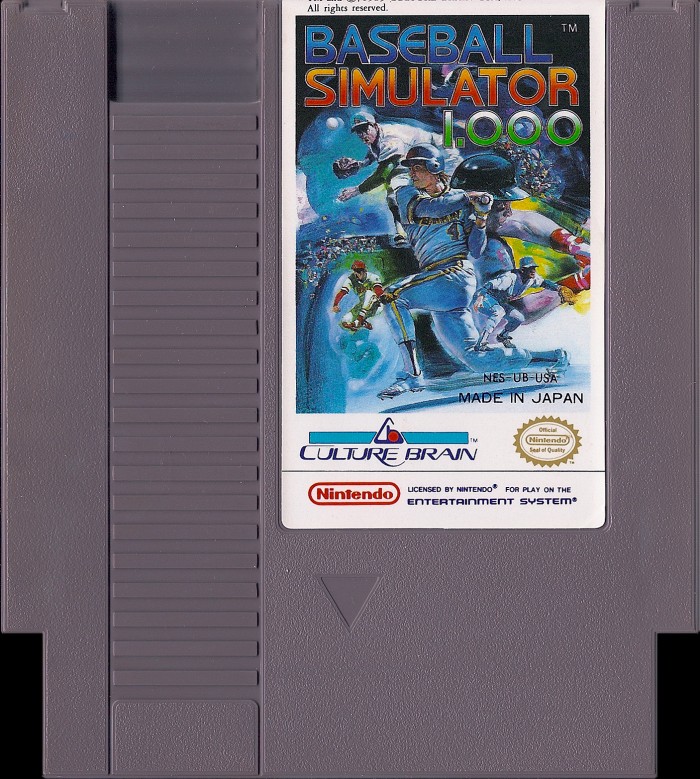

| Front Label ID | NES-UB-USA |
| Seal of Quality | Oval (TM) |
| MfgString Present | Yes |
| 2-digit Code | 27 |

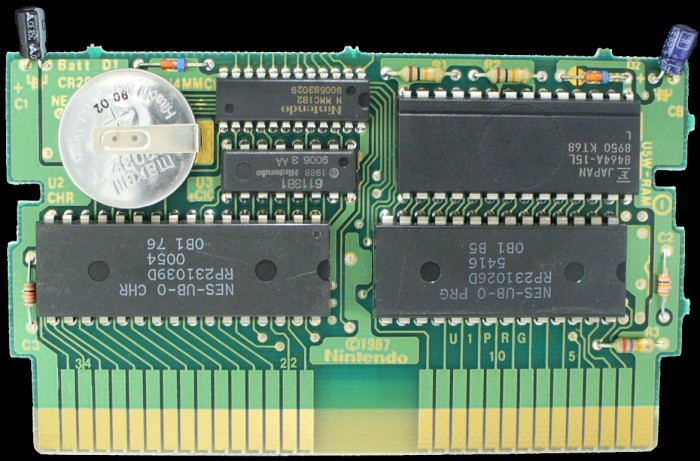

PCB Properties
| Name | NES-SKROM-04 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9006 |
| Est First Run | February 1990 |
| PCB Class | NES-SKROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | Yes |
| WRAM | 8 KB |
| VRAM | 0 KB |
| CIC Type | 6113B1 |
| Hardware | MMC1B2 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-UB-0 PRG | 128 KB | F35F14D3 | 1 |
| CHR0 | NES-UB-0 CHR | 128 KB | C6D532E7 | 1 |
| N/A | ROMs Combined | 256 KB | 1F6EA423 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Ricoh | RP231026D 5416 | Mask ROM 128 KB | DIP-28 | 0B1 B5 | 9006 | |
| U2 CHR | Ricoh | RP231039D 0054 | Mask ROM 128 KB | DIP-32 | 0B1 76 | 9006 | |
| U3 CIC | Sharp | 6113B1 | Nintendo CIC | DIP-16 | 9006 3 AA | 9006 | |
| U4 MMC1 | NEC | MMC1B2 | Nintendo MMC1 | DIP-24 | 9005 B3029 | 9005 | |
| U5 W-RAM | Fujitsu | 8464A-15L | SRAM 8 KB | DIP-28 | 8950 KT68 | 8950 | L |
