Release Info
| Catalog ID | SFX-B9 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | May 19, 1989 |
| Publisher | SNK |
| Developer | SNK |
| Players | 2 |
| Peripherals | Famicom Controller |

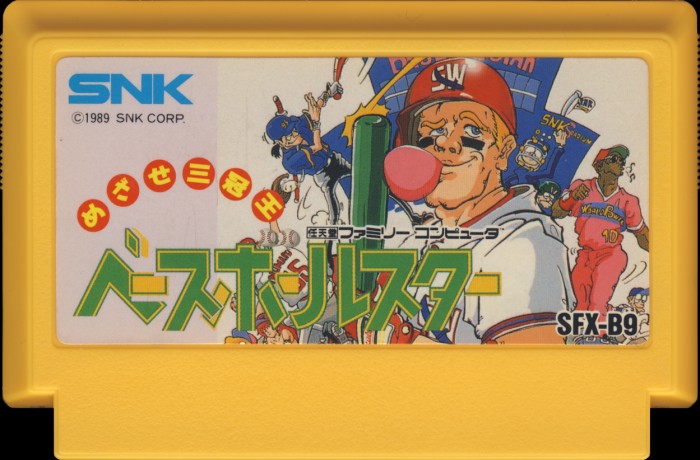

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Light Orange |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | SFX-B9 |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 00 |

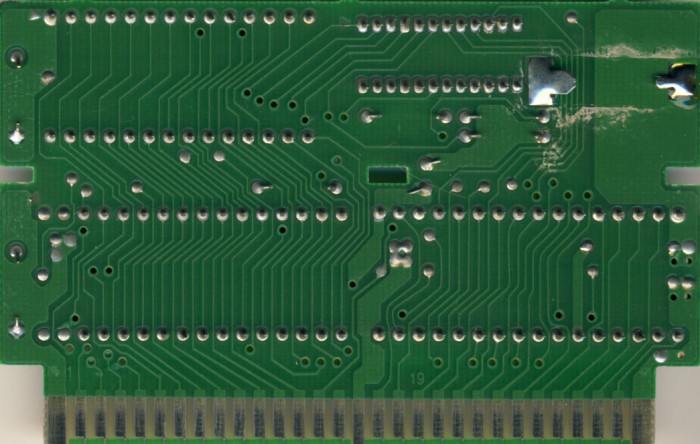

PCB Properties
| Name | HVC-SKROM-03 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8919 - 8919 (4) |
| Est First Run | May 1989 |
| PCB Class | HVC-SKROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | Yes |
| WRAM | 8 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | MMC1A |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | SFX-B9-0 PRG | 128 KB | 479ECFB6 | 4 |
| CHR0 | SFX-B9-0 CHR | 128 KB | 7EEC68B9 | 4 |
| N/A | ROMs Combined | 256 KB | AE5C3D94 | 4 |

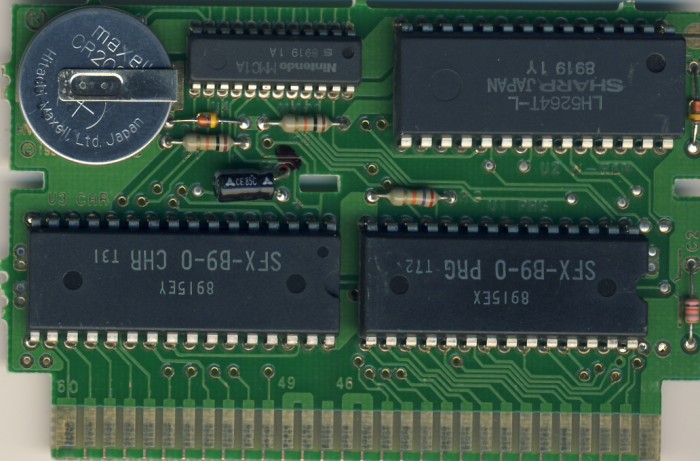

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | NEC | UPD23C1010 | Mask ROM 128 KB | DIP-28 | 8915 EX | 8915 | |
| U2 W-RAM | Sharp | LH5264T-L | SRAM 8 KB | DIP-28 | 8919 1 Y | 8919 | |
| U3 CHR | NEC | UPD23C1013 | Mask ROM 128 KB | DIP-32 | 8915 EY | 8915 | |
| U4 MMC1 | Sharp | MMC1A | Nintendo MMC1 | DIP-24 | 8919 1 A | 8919 |
