Release Info
| Catalog ID | IF-14 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | March 16, 1990 |
| Publisher | Irem |
| Developer | Irem |
| Players | 2 |
| Peripherals | Famicom Controller |

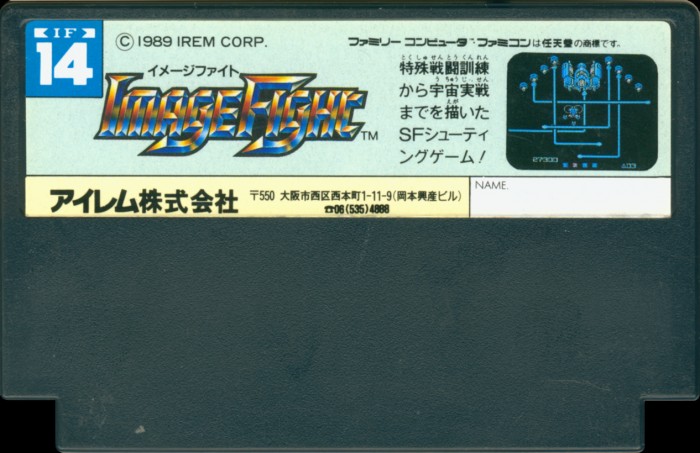

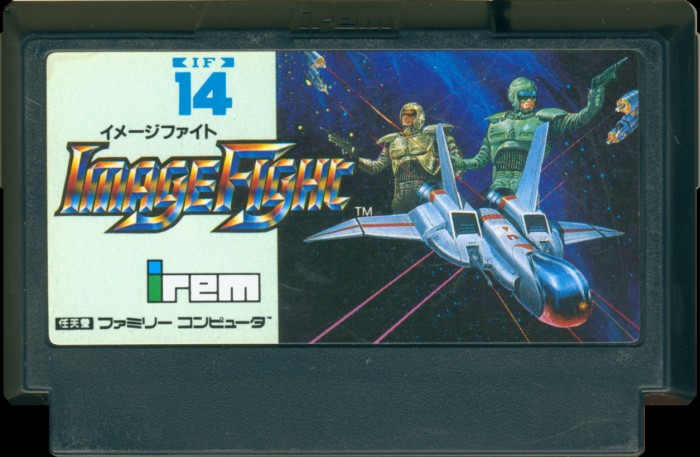

Cart Properties
| Cart Producer | Irem |
|---|---|
| Color | Black |
| Form Factor | New Style |
| Embossed Text | |
| Front Label ID | IF-14 |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

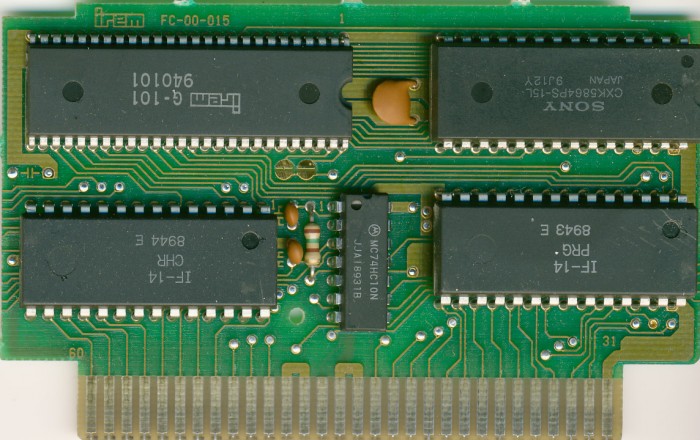

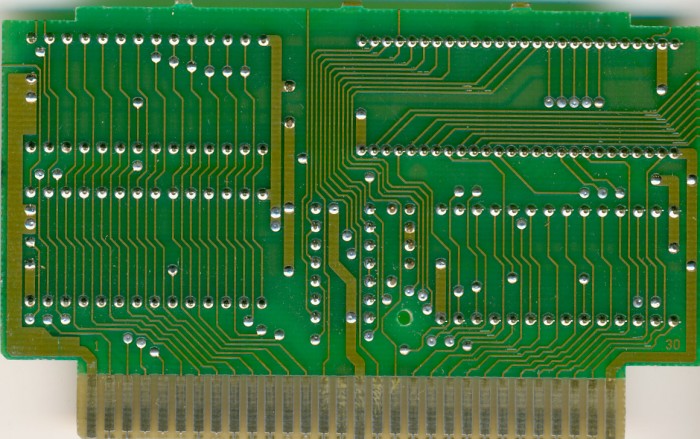

PCB Properties
| Name | FC-00-015 |
|---|---|
| PCB Producer | Irem |
| Manufacturer | Not Specified |
| Mfg Range | 8944 |
| Est First Run | November 1989 |
| PCB Class | IREM-G101 |
| iNES Mapper | 32 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 8 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | 74xx10, G-101 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | IF-14 PRG | 128 KB | 726EDB66 | 1 |
| CHR0 | IF-14 CHR | 128 KB | 57961A3B | 1 |
| N/A | ROMs Combined | 256 KB | D2038FC5 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| Sharp | LH2310 | Mask ROM 128 KB | DIP-28 | 8943 E | 8943 | ||
| Sharp | LH2310 | Mask ROM 128 KB | DIP-28 | 8944 E | 8944 | ||
| Mitsubishi | G-101 | Irem G-101 | DIP-52 | 940 101 | 8940 | ||
| Sony | CXK5864PS-15L | SRAM 8 KB | DIP-28 | 9J 12Y | 8940 | ||
| Motorola | MC74HC10N | 74-10 Series | DIP-14 | 8931 JJAI | 8931 |
