Release Info
| Catalog ID | SUN-RIK-4900 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | November 28, 1985 |
| Publisher | Sunsoft |
| Developer | TOSE Software |
| Players | 2 |
| Peripherals | Famicom Controller |

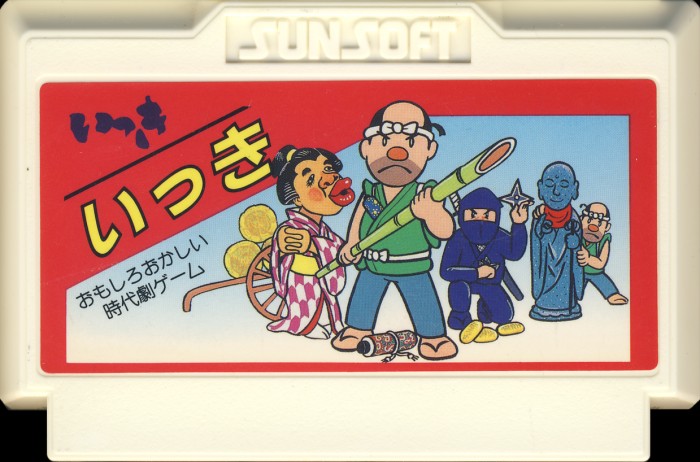

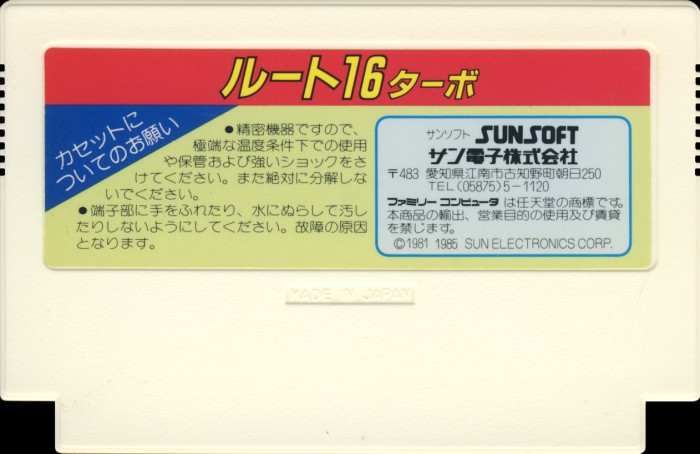

Cart Properties
| Cart Producer | Sunsoft |
|---|---|
| Color | White |
| Form Factor | Small |
| Embossed Text | Made in Japan |
| Front Label ID | |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

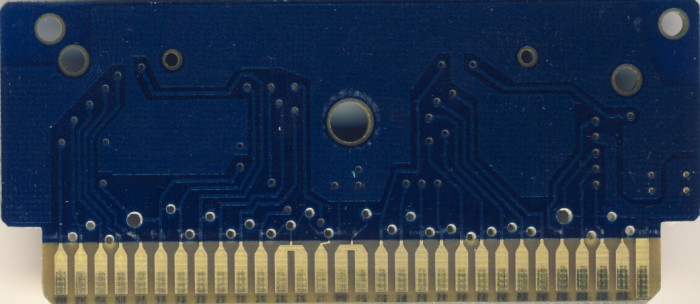

PCB Properties
| Name | 57-A1 |
|---|---|
| PCB Producer | Sunsoft |
| Manufacturer | OKI |
| Mfg Range | 8541 - 8603 (3) |
| Est First Run | October 1985 |
| PCB Class | SUNSOFT-NROM-128 |
| iNES Mapper | 0 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | Not Present | 16 KB | 8CF1AAE2 | 3 |
| CHR0 | Not Present | 8 KB | 41C327D5 | 3 |
| N/A | ROMs Combined | 24 KB | 821FEB7A | 3 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PCB | OKI | SS03 | Chip-on-Board PCB | PCB | 5Z 02 | 8548 | 5H-R7 |
| __Unknown | EP128 | Bonded ROM 16 KB | EPOXY | ||||
| __Unknown | EP64 | Bonded ROM 8 KB | EPOXY |
