Release Info
| Catalog ID | BA-SAKI |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | March 3, 1989 |
| Publisher | Bandai |
| Developer | TOSE Software |
| Players | 1 |
| Peripherals | Famicom Controller |

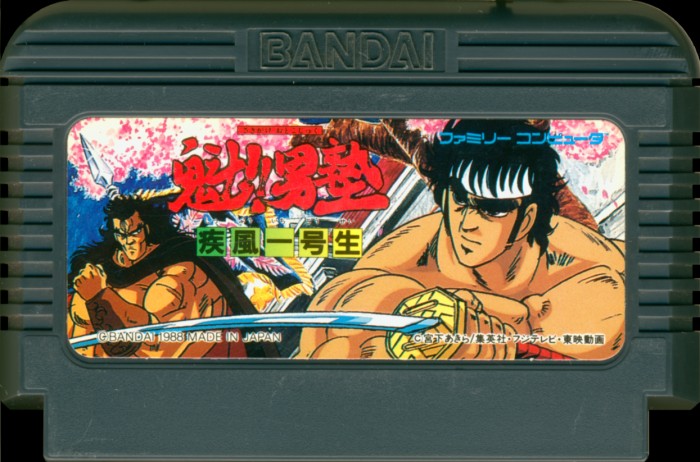

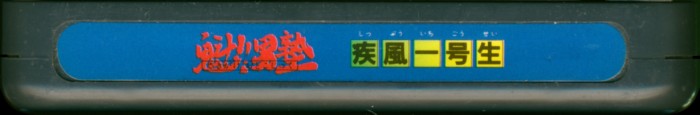

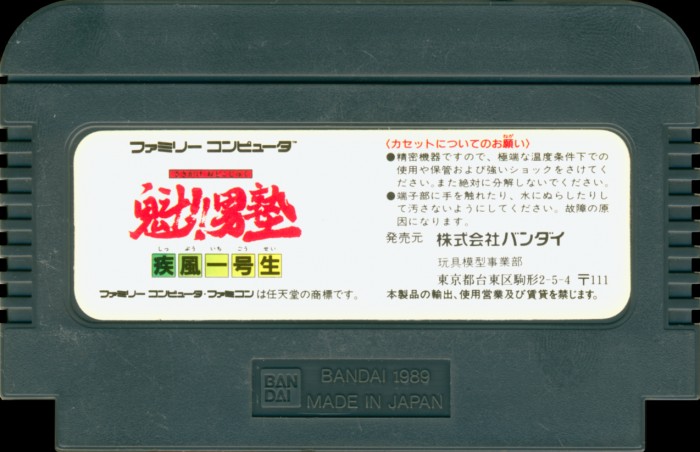

Cart Properties
| Cart Producer | Bandai |
|---|---|
| Color | Black |
| Form Factor | Small |
| Embossed Text | Bandai 19xx Made in Japan |
| Front Label ID | |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

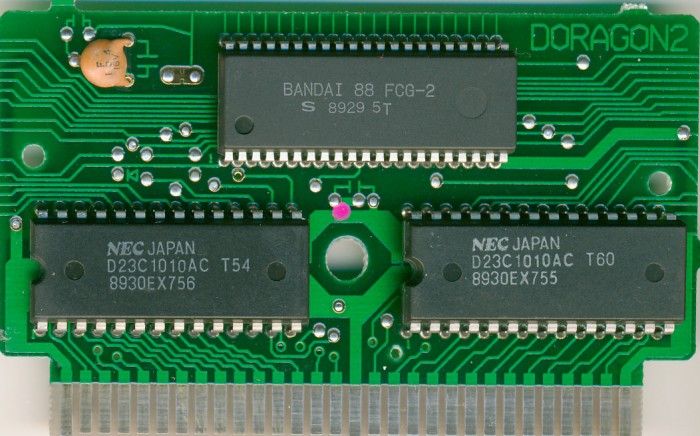

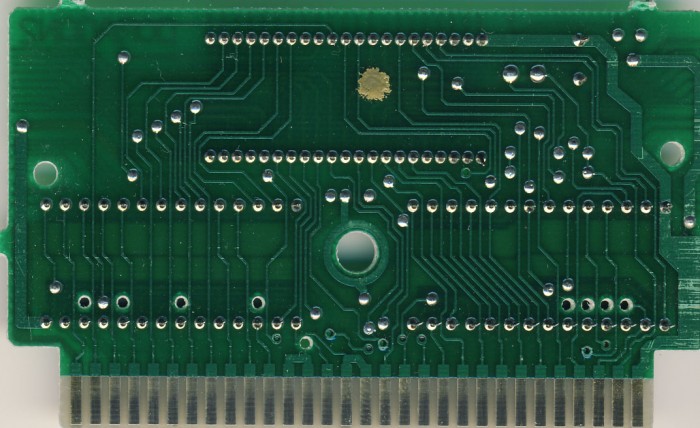

PCB Properties
| Name | DORAGON2 |
|---|---|
| PCB Producer | Bandai |
| Manufacturer | Not Specified |
| Mfg Range | 8930 |
| Est First Run | July 1989 |
| PCB Class | BANDAI-FCG-1 |
| iNES Mapper | 16 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | FCG-2 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | Not Present | 128 KB | AB3062CF | 1 |
| CHR0 | Not Present | 128 KB | 4B842939 | 1 |
| N/A | ROMs Combined | 256 KB | 9C04C8D5 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| NEC | D23C1010AC T54 | Mask ROM 128 KB | DIP-28 | 8930 EX756 | 8930 | ||
| NEC | D23C1010AC T60 | Mask ROM 128 KB | DIP-28 | 8930 EX755 | 8930 | ||
| Sharp | FCG-2 | Bandai FCG-2 | DIP-42 | 8929 5 T | 8929 |
