Release Info
| Catalog ID | JF-31 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | December 7, 1990 |
| Publisher | Jaleco |
| Developer | Jaleco |
| Players | 1 |
| Peripherals | Famicom Controller |

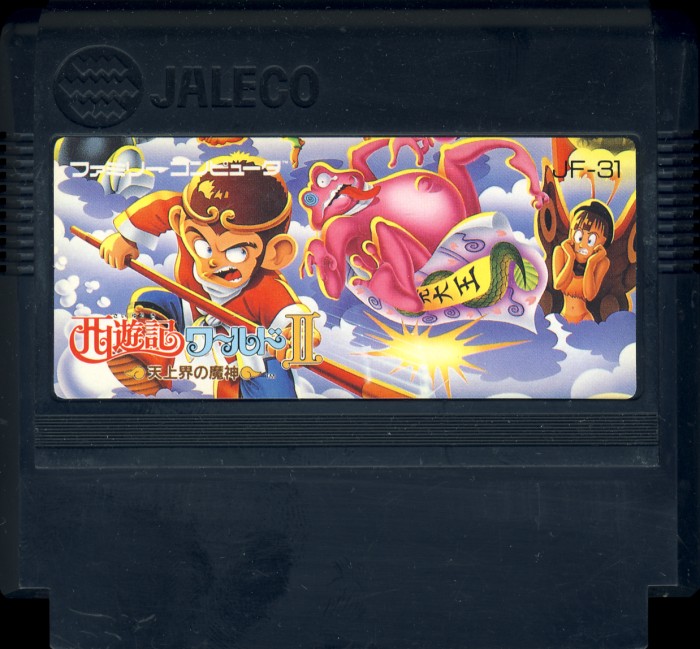

Cart Properties
| Cart Producer | Jaleco |
|---|---|
| Color | Black |
| Form Factor | Large |
| Embossed Text | Made in Japan |
| Front Label ID | JF-31 |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

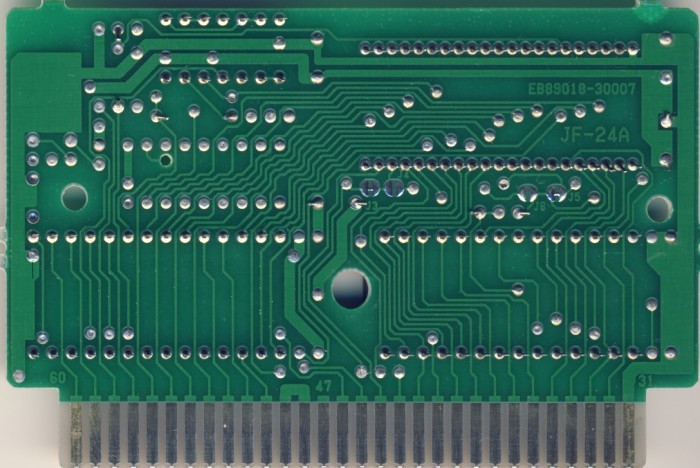

PCB Properties
| Name | JF-24A |
|---|---|
| PCB Producer | Jaleco |
| Manufacturer | Not Specified |
| Mfg Range | 9043 - 9044 (2) |
| Est First Run | October 1990 |
| PCB Class | JALECO-JF-24 |
| iNES Mapper | 18 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | SS88006 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | Not Present | 128 KB | B092FA3E | 2 |
| CHR0 | Not Present | 128 KB | 25BB8F71 | 2 |
| N/A | ROMs Combined | 256 KB | 75B3EB37 | 2 |

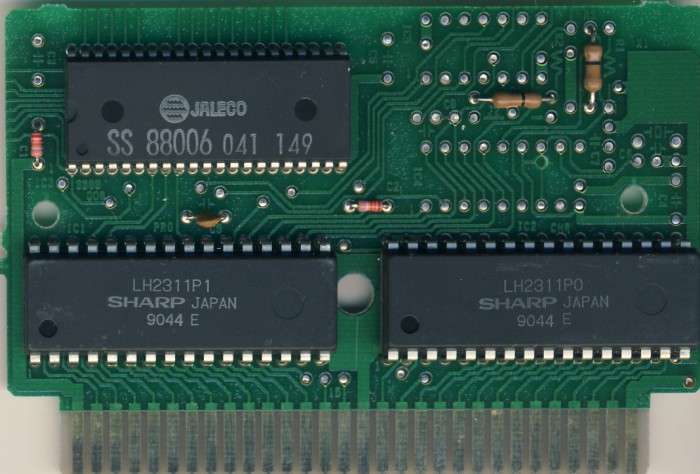

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| IC1 PRG | Sharp | LH2311 P1 | Mask ROM 128 KB | DIP-32 | 9044 E | 9044 | |
| IC2 CHR | Sharp | LH2311 P0 | Mask ROM 128 KB | DIP-32 | 9044 E | 9044 | |
| IC3 SS88006 | Rohm | SS 88006 | Jaleco SS88006 | DIP-42 | 041 149 | 9041 |
