Release Info
| Catalog ID | TDF-91 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | December 8, 1989 |
| Publisher | Toei Animation |
| Developer | Micronics / Khaos |
| Players | 1 |
| Peripherals | Famicom Controller |

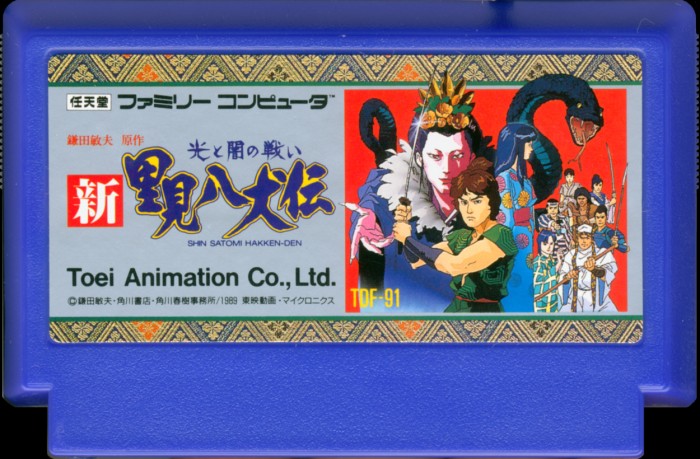

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Indigo |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | TDF-91 |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 00 |
PCB Properties
| Name | HVC-SNROM-09 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8944 |
| Est First Run | November 1989 |
| PCB Class | HVC-SNROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | Yes |
| WRAM | 8 KB |
| VRAM | 8 KB |
| CIC Type | None |
| Hardware | MMC1B2 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | TDF-91-0 PRG | 256 KB | 23E9C736 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | NEC | UPD23C2013C T40 | Mask ROM 256 KB | DIP-32 | 8943 PY713 | 8943 | |
| U2 CHR | NEC | D4364C-15L | SRAM 8 KB | DIP-28 | 8940 M5005 | 8940 | |
| U3 MMC1 | Sharp | MMC1B2 | Nintendo MMC1 | DIP-24 | 8944 5 AA | 8944 | |
| U4 W-RAM | Panasonic | MN4464-08LL | SRAM 8 KB | DIP-28 | 9 51 | 8942 |
