Release Info
| Catalog ID | NES-23-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | June 1990 |
| Publisher | HOT?B |
| Developer | HOT?B |
| Players | 1 |
| Peripherals | NES Controller |

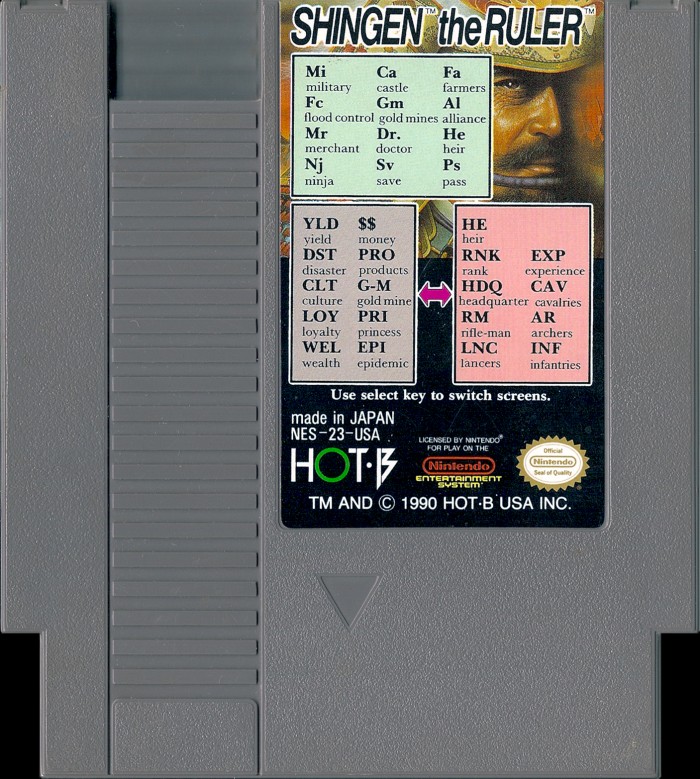

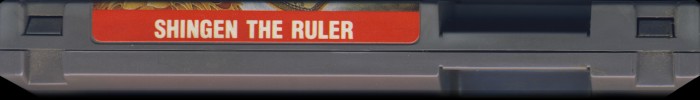

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-23-USA |
| Seal of Quality | Oval (R) |
| MfgString Present | Yes |
| 2-digit Code | 19 |
PCB Properties
| Name | NES-SNROM-05 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9023 |
| Est First Run | June 1990 |
| PCB Class | NES-SNROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | Yes |
| WRAM | 8 KB |
| VRAM | 8 KB |
| CIC Type | 6113B1 |
| Hardware | MMC1B2 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-23-0 PRG | 256 KB | BE3BF3B3 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Panasonic | MN232001 NKE | Mask ROM 256 KB | DIP-32 | 0 50 | 9023 | |
| U2 CHR RAM | Sharp | LH5164D-10L | SRAM 8 KB | DIP-28 | 9009 1 DB | 9009 | |
| U3 CIC | Sharp | 6113B1 | Nintendo CIC | DIP-16 | 9021 5 BA | 9021 | |
| U4 MMC1 | NEC | MMC1B2 | Nintendo MMC1 | DIP-24 | 8949 B3003 | 8949 | |
| U5 W-RAM | Sharp | LH5164D-10L | SRAM 8 KB | DIP-28 | 9012 7 DB | 9012 |
