Release Info
| Catalog ID | IF-13 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | October 27, 1989 |
| Publisher | Irem |
| Developer | Lenar |
| Players | 2 |
| Peripherals | Famicom Controller |

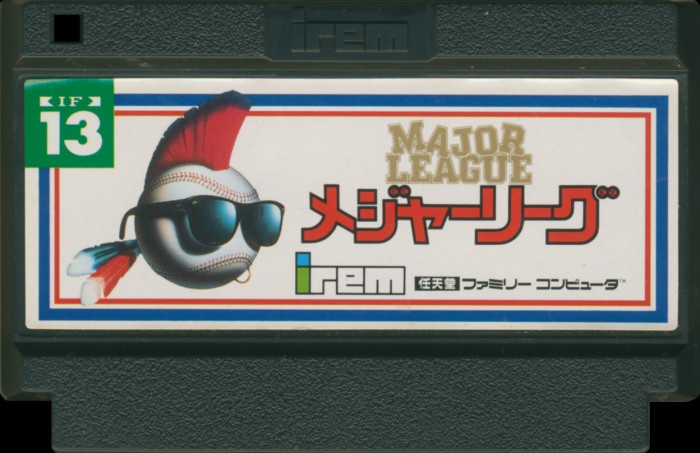

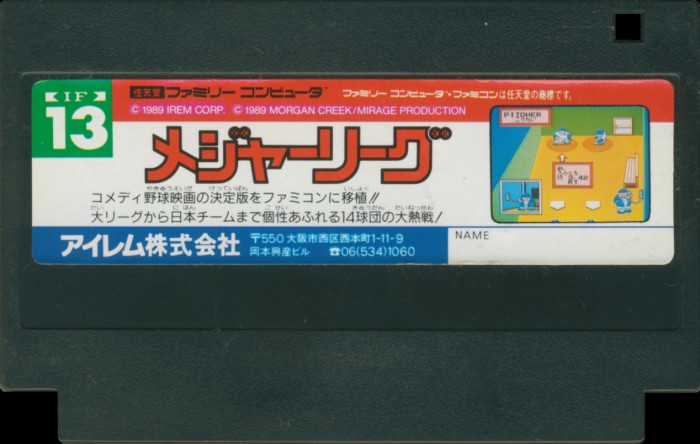

Cart Properties
| Cart Producer | Irem |
|---|---|
| Color | Black |
| Form Factor | Original wo/ LED |
| Embossed Text | |
| Front Label ID | IF-13 |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

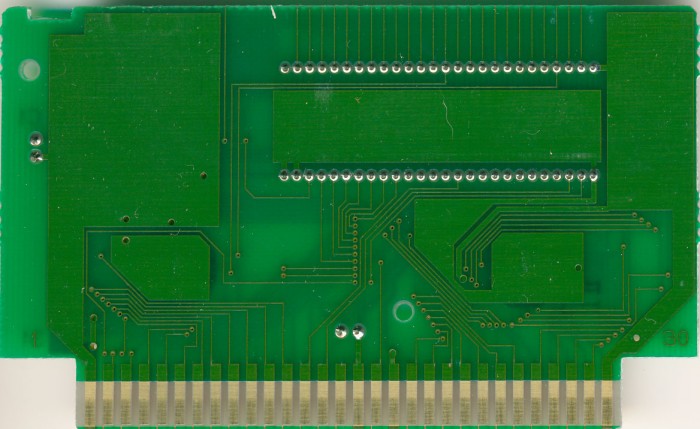

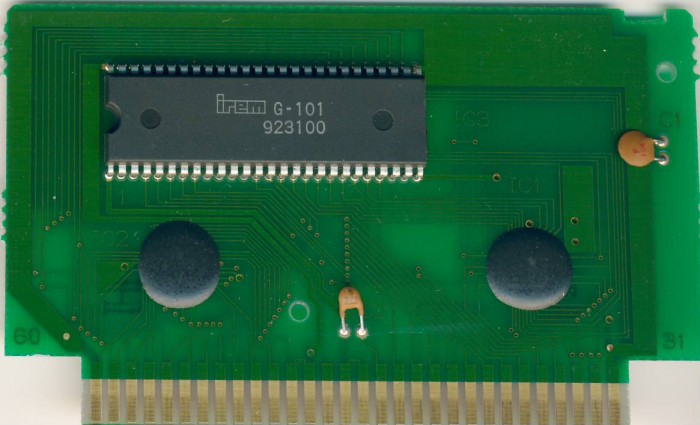

PCB Properties
| Name | UNK-IF-13 |
|---|---|
| PCB Producer | Irem |
| Manufacturer | Not Specified |
| Mfg Range | 8923 |
| Est First Run | June 1989 |
| PCB Class | IREM-G101 |
| iNES Mapper | 32 |
| Mirroring | One Screen |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | G-101 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | Not Present | 128 KB | C0FED437 | 1 |
| CHR0 | Not Present | 128 KB | 5CD328C8 | 1 |
| N/A | ROMs Combined | 256 KB | 243A8735 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| IC1 | __Unknown | EP1000 | Bonded ROM 128 KB | EPOXY | |||
| IC2 | __Unknown | EP1000 | Bonded ROM 128 KB | EPOXY | |||
| IC3 | Mitsubishi | G-101 | Irem G-101 | DIP-52 | 923 100 | 8923 |
