Release Info
| Catalog ID | NES-BS-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | April 1988 |
| Publisher | LJN |
| Developer | Atlus |
| Players | 2 |
| Peripherals | NES Controller |

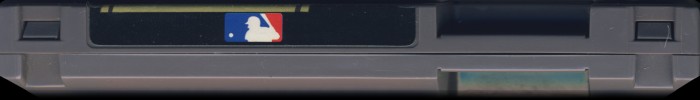

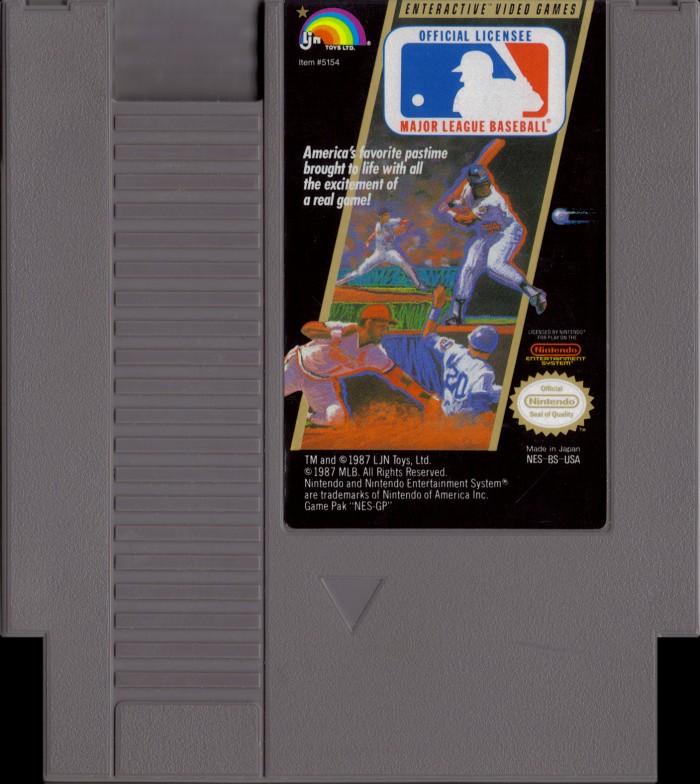

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-BS-USA |
| Seal of Quality | Oval (TM) |
| MfgString Present | Yes |
| 2-digit Code | 09 |

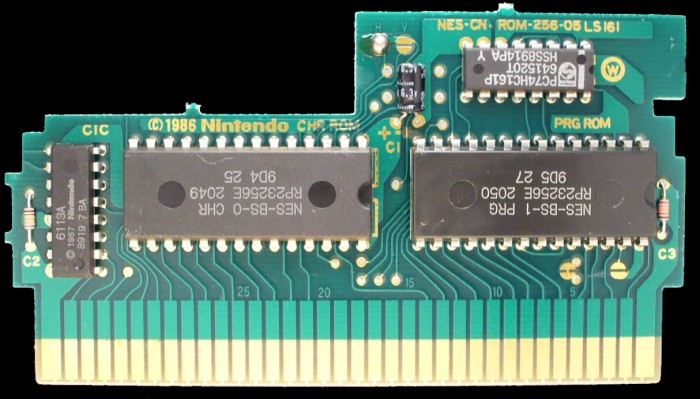

PCB Properties
| Name | NES-CN-ROM-256-05 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8813 - 8919 (3) |
| Est First Run | March 1988 |
| PCB Class | NES-CNROM |
| iNES Mapper | 3 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 6113A |
| Hardware | 74xx161 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-BS-1 PRG | 32 KB | 754522C3 | 3 |
| CHR0 | NES-BS-0 CHR | 32 KB | 1FCFC7D9 | 5 |
| N/A | ROMs Combined | 64 KB | 96E6C1CE | 3 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PRG ROM | Ricoh | RP23256E 2050 | Mask ROM 32 KB | DIP-28 | 9D5 27 | 8918 | |
| CHR ROM | Ricoh | RP23256E 2049 | Mask ROM 32 KB | DIP-28 | 9D4 25 | 8917 | |
| CIC | Sharp | 6113A | Nintendo CIC | DIP-16 | 8919 7 BA | 8919 | |
| LS161 | Phillips | PC74HC161P | 74-161 Series | DIP-16 | 8914 HSS | 8914 | 641520T |
