Release Info
| Catalog ID | TFC-FL-4500-03 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | August 1, 1985 |
| Publisher | Taito |
| Developer | Taito |
| Players | 2 |
| Peripherals | Famicom Controller |

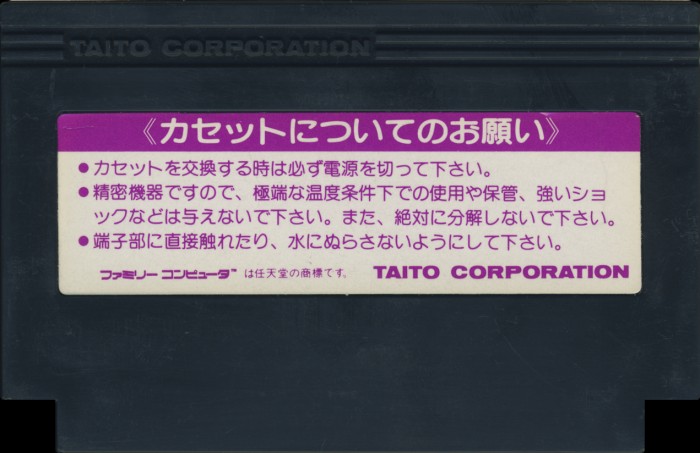

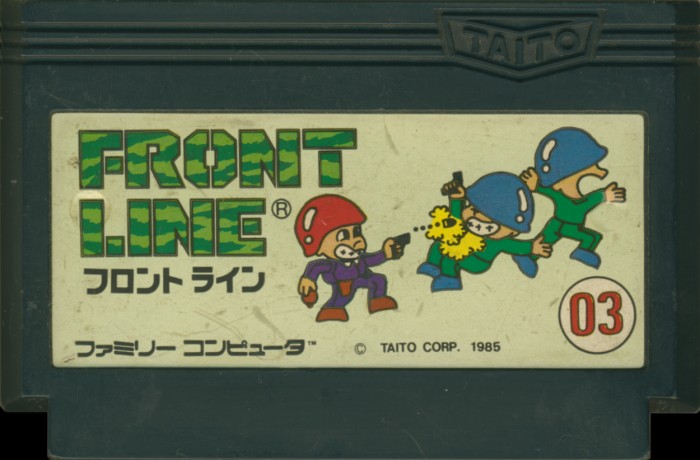

Cart Properties
| Cart Producer | Taito |
|---|---|
| Color | Black |
| Form Factor | Short Label / Logo 1 / 2 Screws |
| Embossed Text | |
| Front Label ID | Not Present |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

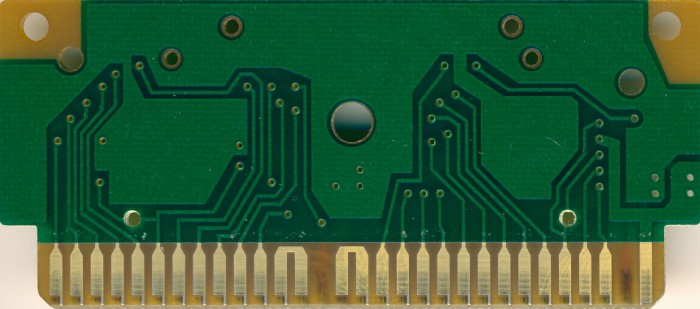

PCB Properties
| Name | 1A |
|---|---|
| PCB Producer | Taito |
| Manufacturer | OKI |
| Mfg Range | 8540 |
| Est First Run | October 1985 |
| PCB Class | TAITO-NROM-128 |
| iNES Mapper | 0 |
| Mirroring | Horizontal |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | Not Present | 16 KB | F59DA73C | 1 |
| CHR0 | Not Present | 8 KB | CF22CD4C | 1 |
| N/A | ROMs Combined | 24 KB | CF4DBDBE | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|

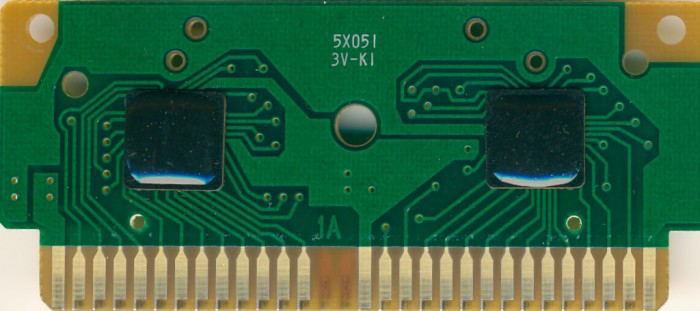

| PCB | OKI | TFC-FL | Chip-on-Board PCB | PCB | 5X 051 | 8540 | 3V-K1 |
| __Unknown | EP128 | Bonded ROM 16 KB | EPOXY | ||||
| __Unknown | EP64 | Bonded ROM 8 KB | EPOXY |
