Release Info
| Catalog ID | TFC-FM-5900-17 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | March 29, 1988 |
| Publisher | Taito |
| Developer | TOSE Software |
| Players | 1 |
| Peripherals | Famicom Controller |

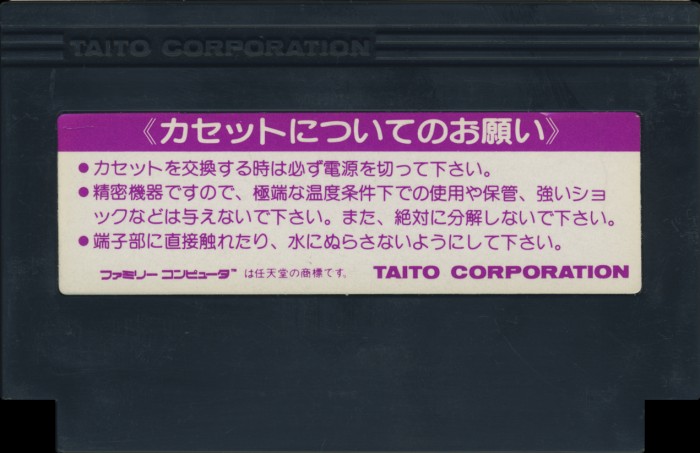

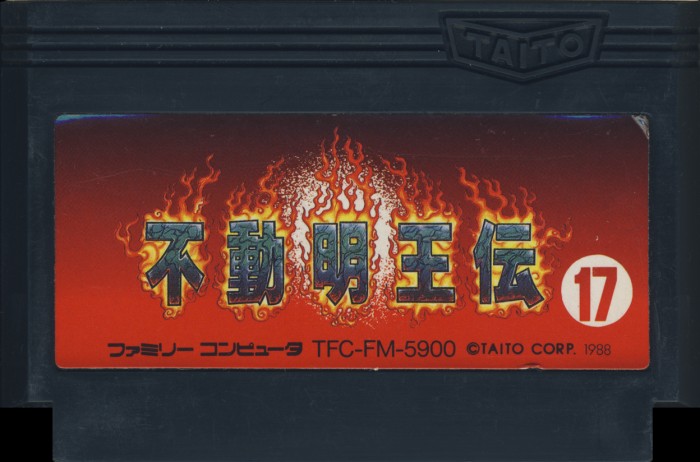

Cart Properties
| Cart Producer | Taito |
|---|---|
| Color | Black |
| Form Factor | Short Label / Logo 1 / 2 Screws |
| Embossed Text | |
| Front Label ID | TFC-FM-5900 |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

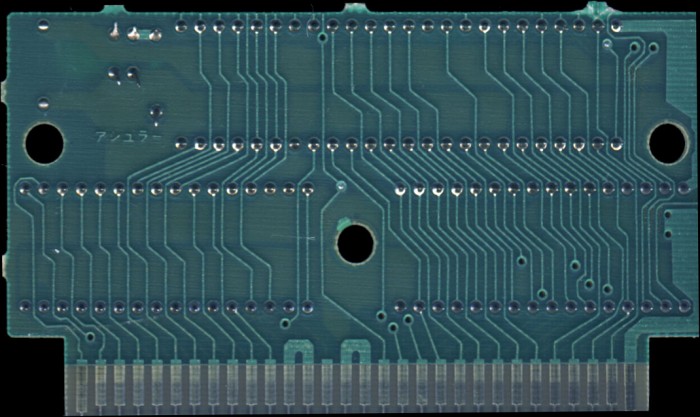

PCB Properties
| Name | アシユラー |
|---|---|
| PCB Producer | Taito |
| Manufacturer | Not Specified |
| Mfg Range | 8813 |
| Est First Run | March 1988 |
| PCB Class | TAITO-X1-005 |
| iNES Mapper | 207 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | X1-005 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | Not Present | 256 KB | 9832D15A | 1 |
| CHR0 | Not Present | 128 KB | AAA9ACDD | 1 |
| N/A | ROMs Combined | 384 KB | 7678F1D5 | 1 |

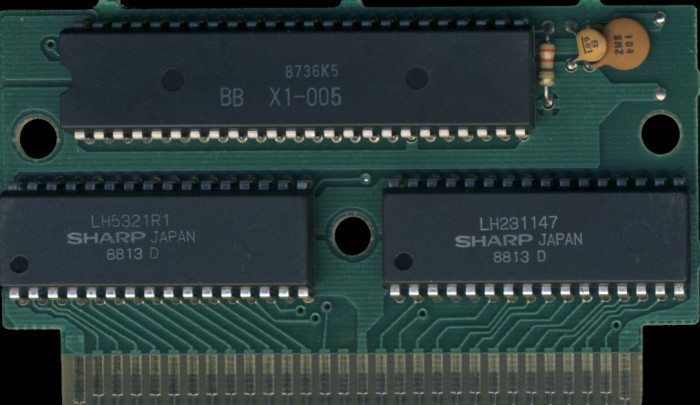

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| Sharp | LH5321 R1 | Mask ROM 256 KB | DIP-32 | 8813 D | 8813 | ||
| Sharp | LH2311 47 | Mask ROM 128 KB | DIP-32 | 8813 D | 8813 | ||
| NEC | X1-005 | Taito X1-005 | DIP-48 | 8736 K5 | 8736 | BB |
