Release Info
| Catalog ID | TKS-XF |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | August 11, 1990 |
| Publisher | Tonkin House |
| Developer | TOSE Software |
| Players | 2 |
| Peripherals | Famicom Controller |

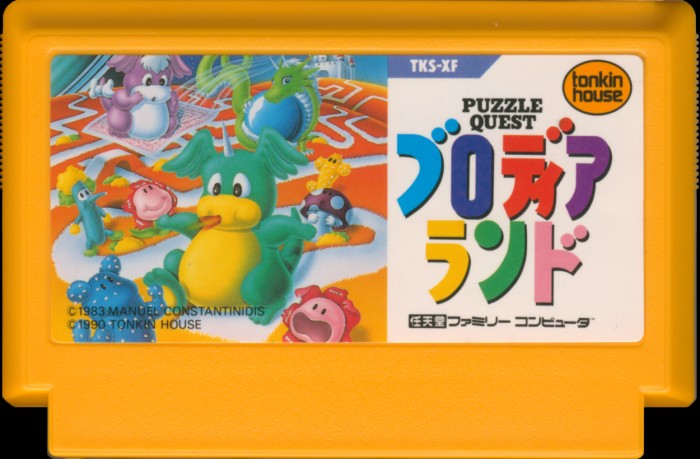

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Orange |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | TKS-XF |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 00 |

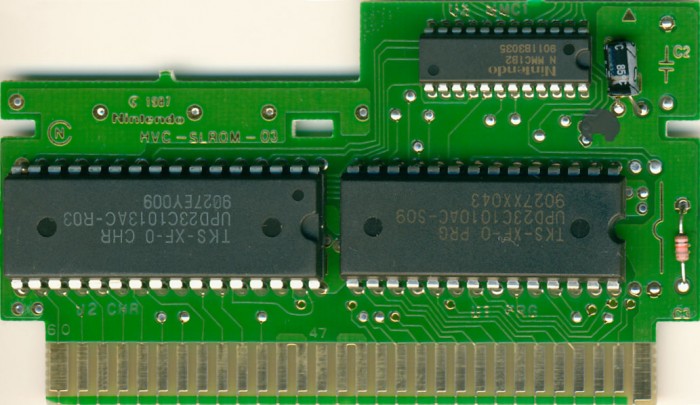

PCB Properties
| Name | HVC-SLROM-03 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9027 |
| Est First Run | July 1990 |
| PCB Class | HVC-SLROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | MMC1B2 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | TKS-XF-0 PRG | 128 KB | 9E4573D5 | 1 |
| CHR0 | TKS-XF-0 CHR | 128 KB | 192B916C | 1 |
| N/A | ROMs Combined | 256 KB | 008E2D30 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | NEC | UPD23C1010AC S09 | Mask ROM 128 KB | DIP-28 | 9027 XX043 | 9027 | |
| U2 CHR | NEC | UPD23C1013AC R03 | Mask ROM 128 KB | DIP-32 | 9027 EY009 | 9027 | |
| U3 MMC1 | NEC | MMC1B2 | Nintendo MMC1 | DIP-24 | 9011 B3035 | 9011 |
