Release Info
| Catalog ID | DTF-5F (32) |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | July 20, 1990 |
| Publisher | Taito |
| Developer | KID |
| Players | 1 |
| Peripherals | Famicom Controller |

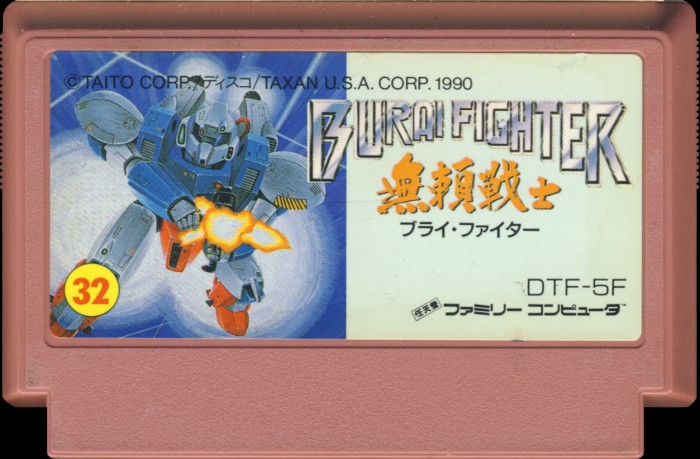

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Sienna |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | DTF-5F |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 17 |
PCB Properties
| Name | UNK-HVC-TEROM |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Mfg17 |
| Mfg Range | 9012 |
| Est First Run | March 1990 |
| PCB Class | HVC-TEROM |
| iNES Mapper | 4 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | MMC3B |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | Not Present | 32 KB | 3F5A4DD0 | 1 |
| CHR0 | Not Present | 32 KB | AE759E48 | 1 |
| N/A | ROMs Combined | 64 KB | E9176129 | 1 |

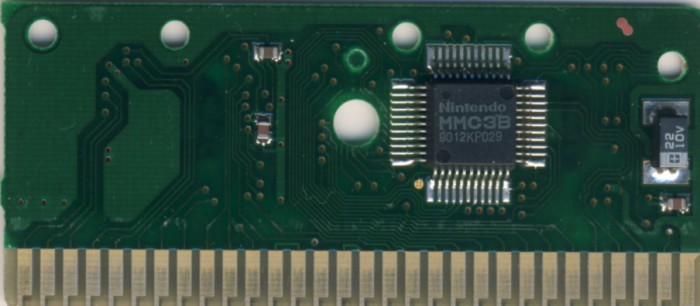

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|

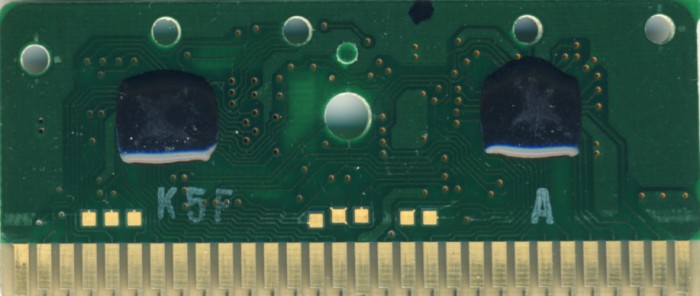

| PCB | _UnkMfg17 | K5F | Chip-on-Board PCB | PCB | A | ||
| __Unknown | EP256 | Bonded ROM 32 KB | EPOXY | ||||
| __Unknown | EP256 | Bonded ROM 32 KB | EPOXY | ||||
| NEC | MMC3B | Nintendo MMC3 | TQFP-44 | 9012 KP029 | 9012 |
