Release Info
| Catalog ID | NES-UF-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | March 1990 |
| Publisher | Taxan |
| Developer | KID |
| Players | 1 |
| Peripherals | NES Controller |

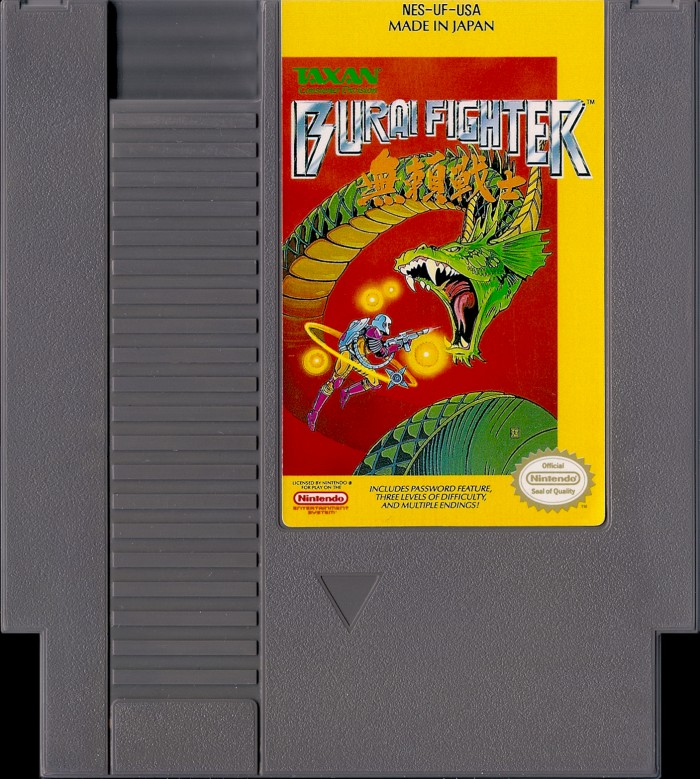

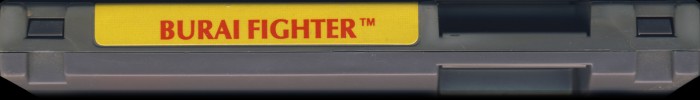

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-UF-USA |
| Seal of Quality | Oval (TM) |
| MfgString Present | Yes |
| 2-digit Code | 05 |

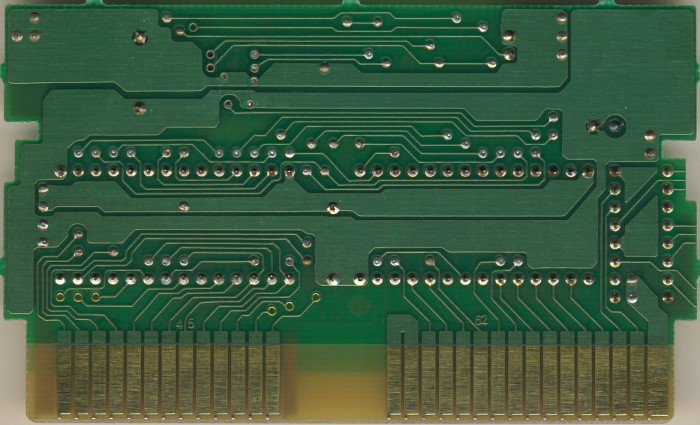

PCB Properties
| Name | NES-TEROM-03 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9004 - 9004 (2) |
| Est First Run | January 1990 |
| PCB Class | NES-TEROM |
| iNES Mapper | 4 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 6113B1 |
| Hardware | MMC3B |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-UF-0 PRG | 32 KB | 7826FD3E | 2 |
| CHR0 | NES-UF-0 CHR | 32 KB | 99D58BC3 | 2 |
| N/A | ROMs Combined | 64 KB | CE228874 | 2 |

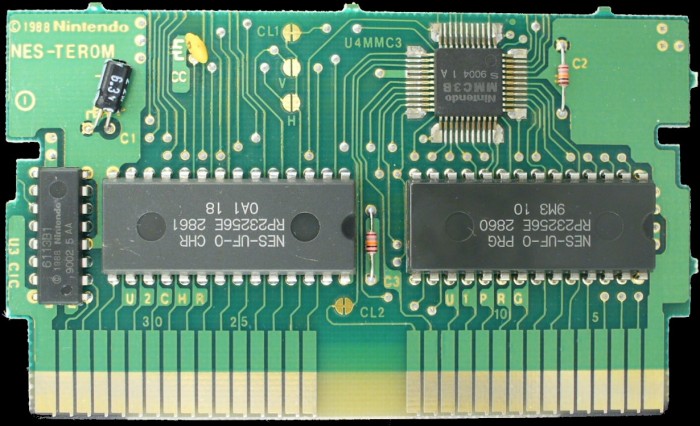

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Ricoh | RP23256E 2860 | Mask ROM 32 KB | DIP-28 | 9M3 10 | 8951 | |
| U2 CHR | Ricoh | RP23256E 2861 | Mask ROM 32 KB | DIP-28 | 0A1 18 | 9001 | |
| U3 CIC | Sharp | 6113B1 | Nintendo CIC | DIP-16 | 9002 5 AA | 9002 | |
| U4 MMC3 | Sharp | MMC3B | Nintendo MMC3 | TQFP-44 | 9004 1 A | 9004 |
