Release Info
| Catalog ID | HVC-IC |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | January 30, 1985 |
| Publisher | Nintendo |
| Developer | Nintendo |
| Players | 2 |
| Peripherals | Famicom Controller |

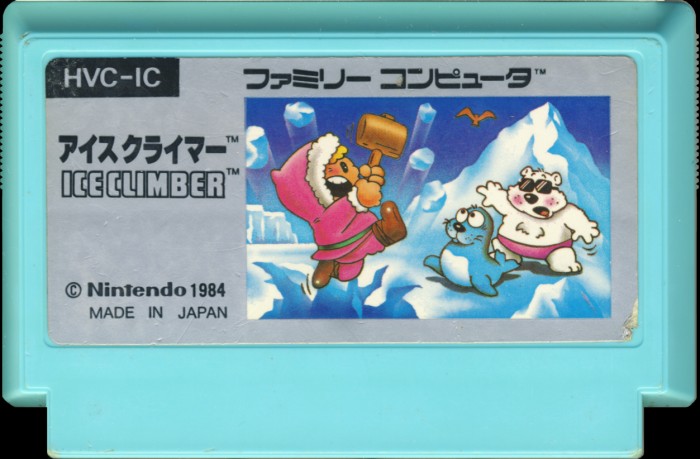

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Cyan |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | HVC-IC |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 02 |

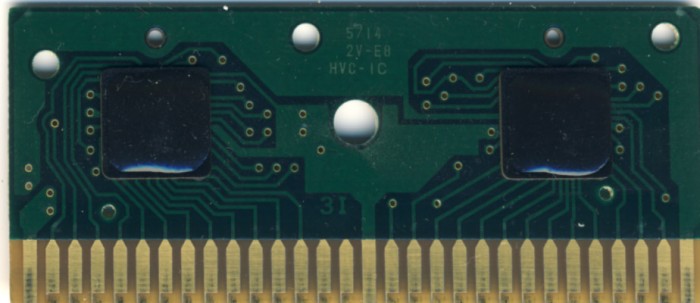

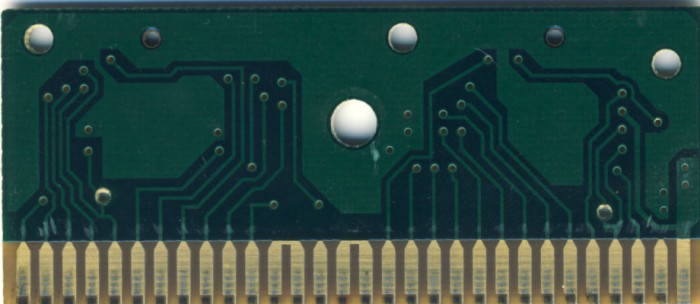

PCB Properties
| Name | 3I |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | OKI |
| Mfg Range | 8527 |
| Est First Run | July 1985 |
| PCB Class | HVC-NROM-128 |
| iNES Mapper | 0 |
| Mirroring | Horizontal |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | Not Present | 16 KB | D548307F | 8 |
| CHR0 | Not Present | 8 KB | FD98F4D3 | 1 |
| N/A | ROMs Combined | 24 KB | 0B58880C | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PCB | OKI | HVC-IC | Chip-on-Board PCB | PCB | 57 14 | 8527 | 2V-E8 |
| __Unknown | EP128 | Bonded ROM 16 KB | EPOXY | ||||
| __Unknown | EP64 | Bonded ROM 8 KB | EPOXY |
