Release Info
| Catalog ID | NES-IC-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | October 18, 1985 |
| Publisher | Nintendo |
| Developer | Nintendo |
| Players | 2 |
| Peripherals | NES Controller |

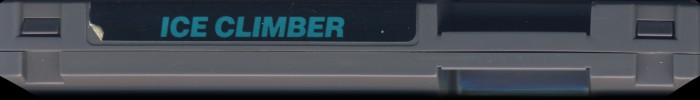

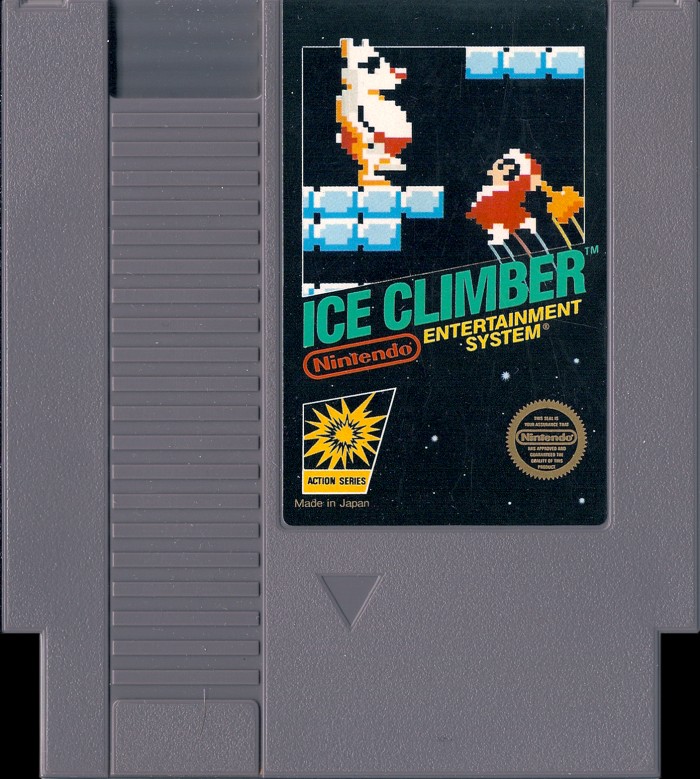

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | Not Present |
| Seal of Quality | Round |
| MfgString Present | Yes |
| 2-digit Code | 20 |

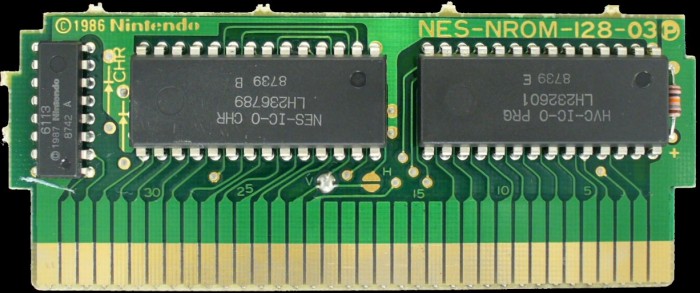

PCB Properties
| Name | NES-NROM-128-03 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8637 - 8742 (3) |
| Est First Run | September 1986 |
| PCB Class | NES-NROM-128 |
| iNES Mapper | 0 |
| Mirroring | Horizontal |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 6113 |
| Hardware |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | HVC-IC-0 PRG | 16 KB | D548307F | 8 |
| CHR0 | NES-IC-0 CHR | 8 KB | 0D58A8B1 | 7 |
| N/A | ROMs Combined | 24 KB | FB98D46E | 7 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PRG | Sharp | LH2326 01 | Mask ROM 16 KB | DIP-28 | 8739 E | 8739 | |
| CHR | Sharp | LH2367 89 | Mask ROM 8 KB | DIP-28 | 8739 B | 8739 | |
| CIC | Sharp | 6113 | Nintendo CIC | DIP-16 | 8742 A | 8742 |
