Release Info
| Catalog ID | HVC-HA |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | June 12, 1984 |
| Publisher | Nintendo |
| Developer | Nintendo |
| Players | 1 |
| Peripherals | Zapper Light Gun |

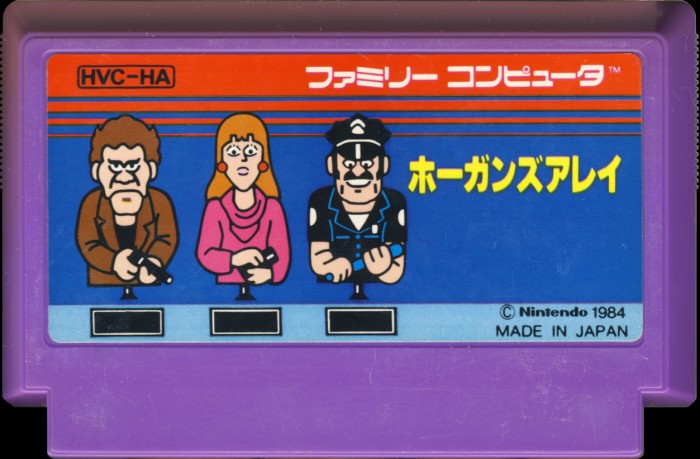

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Violet |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | HVC-HA |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 11 |

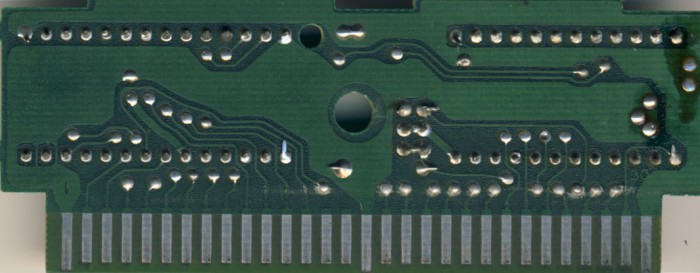

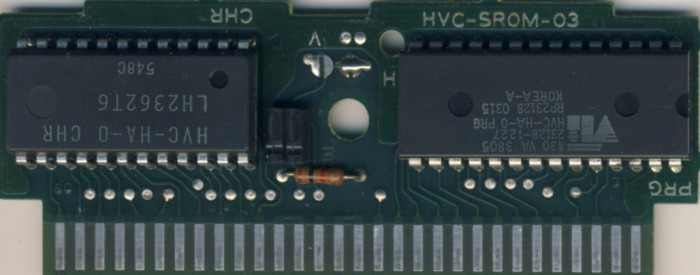

PCB Properties
| Name | HVC-SROM-03 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8434 |
| Est First Run | August 1984 |
| PCB Class | HVC-SROM |
| iNES Mapper | 0 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | HVC-HA-0 PRG | 16 KB | 8963AE6E | 6 |
| CHR0 | HVC-HA-0 CHR | 8 KB | 5DF42FC4 | 6 |
| N/A | ROMs Combined | 24 KB | FF24D794 | 5 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PRG | VTI | 23128 1227 | Mask ROM 16 KB | DIP-28 | 430 VA 3805 | 8430 | RP23128 0315 |
| CHR | Sharp | LH2362 T6 | Mask ROM 8 KB | DIP-24 | 48C 5 | 8434 |
