Release Info
| Catalog ID | NES-HA-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | October 18, 1985 |
| Publisher | Nintendo |
| Developer | Nintendo |
| Players | 1 |
| Peripherals | Zapper Light Gun |

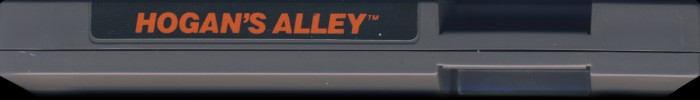

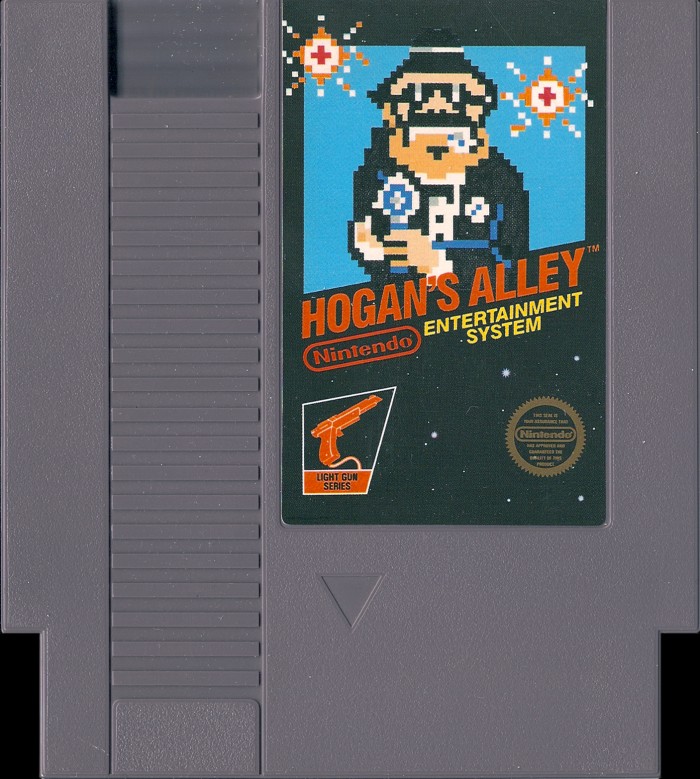

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 5-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | Not Present |
| Seal of Quality | Round |
| MfgString Present | No |
| 2-digit Code | 12 |

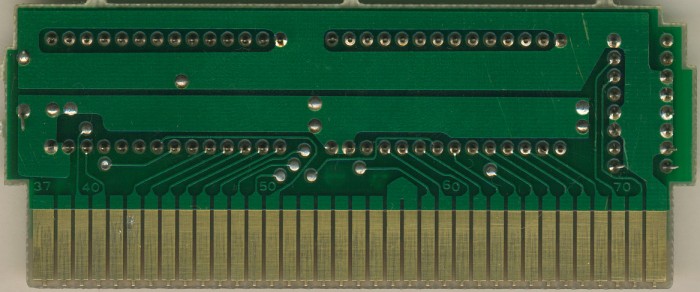

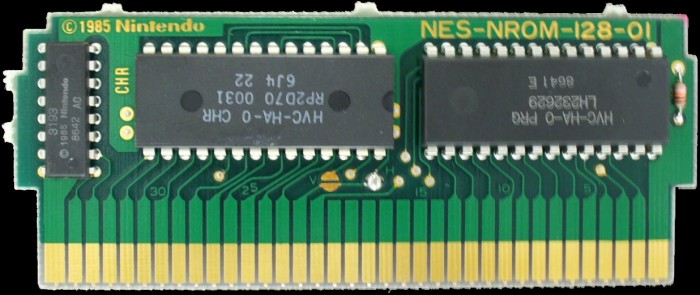

PCB Properties
| Name | NES-NROM-128-01 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8642 - 8909 (2) |
| Est First Run | October 1986 |
| PCB Class | NES-NROM-128 |
| iNES Mapper | 0 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 3193 |
| Hardware |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | HVC-HA-0 PRG | 16 KB | 8963AE6E | 6 |
| CHR0 | HVC-HA-0 CHR | 8 KB | 5DF42FC4 | 6 |
| N/A | ROMs Combined | 24 KB | FF24D794 | 5 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PRG | Sharp | LH2326 29 | Mask ROM 16 KB | DIP-28 | 8641 E | 8641 | |
| CHR | Ricoh | RP2D70 0031 | Mask ROM 8 KB | DIP-28 | 6J4 22 | 8639 | |
| CIC | Sharp | 3193 | Nintendo CIC | DIP-16 | 8642 AC | 8642 |
