Release Info
| Catalog ID |
PNF-KY (R59V5917) |
| Region |
Japan (NTSC) |
| Class |
Licensed |
| Release Date |
September 16, 1988 |
| Publisher |
Pony Canyon |
| Developer |
Marionette |
| Players |
1 |
| Peripherals |
Famicom Controller |

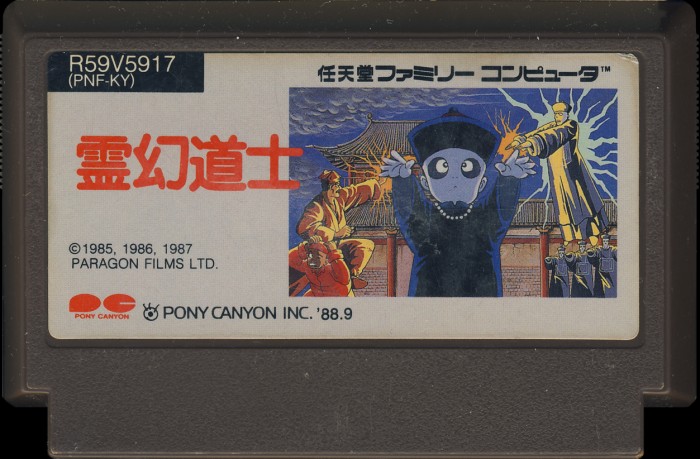

Cart Properties
| Cart Producer |
Nintendo (Famicom) |
| Color |
Brown |
| Form Factor |
Small |
| Embossed Text |
|
| Front Label ID |
PNF-KY |
| Seal of Quality |
|
| MfgString Present |
|
| 2-digit Code |
09 |
PCB Properties
| Name |
HVC-SGROM-02 |
| PCB Producer |
Nintendo |
| Manufacturer |
Not Specified |
| Mfg Range |
8827 |
| Est First Run |
July 1988 |
| PCB Class |
HVC-SGROM |
| iNES Mapper |
1 |
| Mirroring |
Mapper Ctrl |
| Battery present |
No |
| WRAM |
0 KB |
| VRAM |
8 KB |
| CIC Type |
None |
| Hardware |
MMC1A |
ROM Details
| Type |
Label |
Size |
CRC32 |
x ! |
| PRG0 |
PNF-KY-0 PRG |
256 KB |
0021ED29 |
1 |
Detailed Chip Info
| Designation |
Maker |
Part # |
Type |
Package |
Date Code |
Std |
Misc |
|
NEC |
UPD23C2013
|
Mask ROM
256 KB
|
DIP-32 |
8827
EY
|
8827 |
|
|
NEC |
64S20
|
SRAM
8 KB
|
DIP-28 |
8827
B5
|
8827 |
|
|
Sharp |
MMC1A
|
Nintendo MMC1
|
DIP-24 |
8818
A
|
8818 |
|
Additional Images
PCB Images
