Release Info
| Catalog ID | NES-RG-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | January 1988 |
| Publisher | Taito |
| Developer | Technos |
| Players | 2 |
| Peripherals | NES Controller |

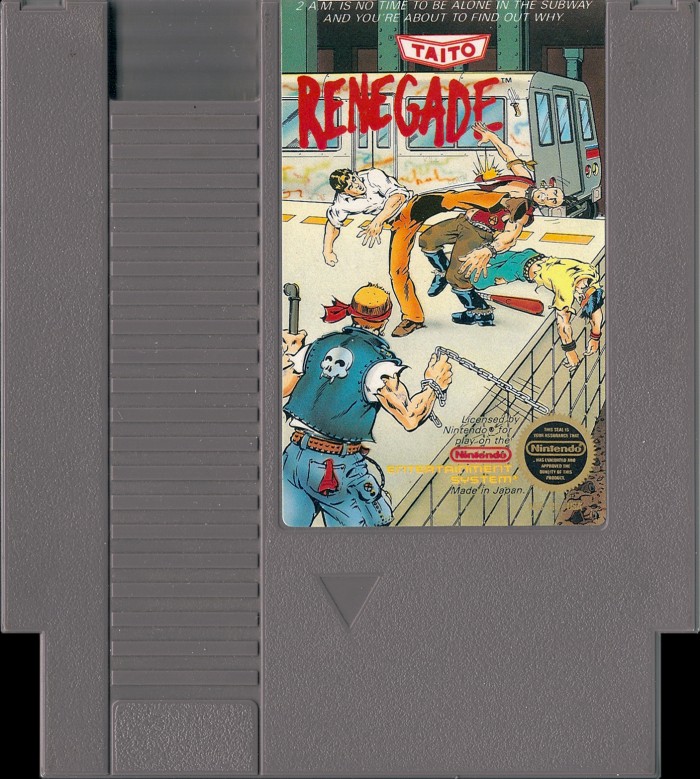

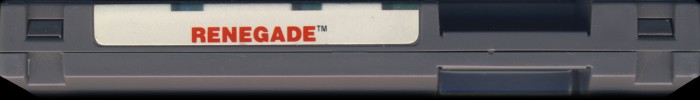

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-RG-USA |
| Seal of Quality | Round |
| MfgString Present | Yes |
| 2-digit Code | 20 |
PCB Properties
| Name | NES-UN-ROM-07 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8751 - 8907 (4) |
| Est First Run | December 1987 |
| PCB Class | NES-UNROM |
| iNES Mapper | 2 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 8 KB |
| CIC Type | 6113B1 |
| Hardware | 74xx161, 74xx32 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-RG-0 PRG | 128 KB | A0568E1D | 4 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PRG ROM | Fujitsu | MB831002 | Mask ROM 128 KB | DIP-28 | 8902 Z04 | 8902 | |
| CHR RAM | Sanyo | LC3664R-15 | SRAM 8 KB | DIP-28 | 8C M64 | 8848 | |
| CIC | Sharp | 6113B1 | Nintendo CIC | DIP-16 | 8907 5 B | 8907 | |
| LS161N | Phillips | PC74HC161P | 74-161 Series | DIP-16 | 8849 HSS | 8849 | 624680T |
| LS32 | Phillips | 74HC32N | 74-32 Series | DIP-14 | 8817 KB | 8817 | QEJ7168 |
