Release Info
| Catalog ID | HVC-BF |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | January 22, 1985 |
| Publisher | Nintendo |
| Developer | Nintendo |
| Players | 2 |
| Peripherals | Famicom Controller |

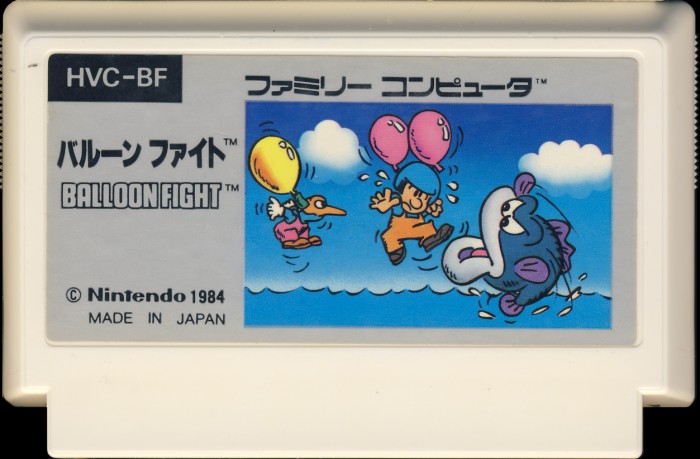

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | White |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | HVC-BF |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 12 |

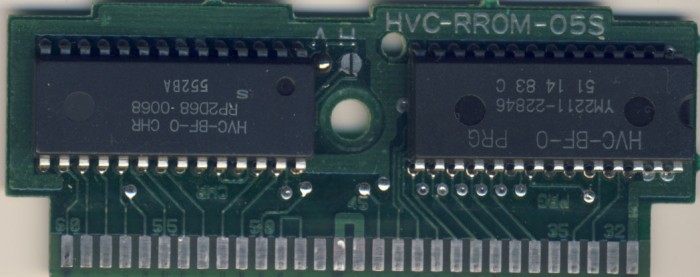

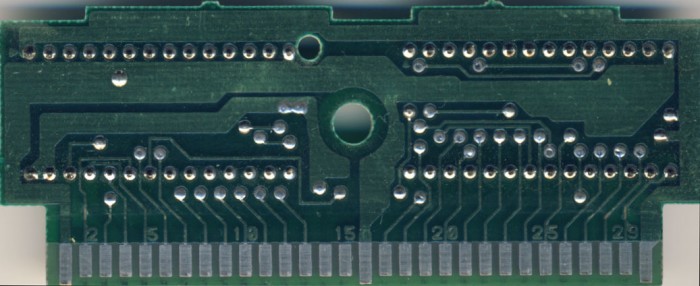

PCB Properties
| Name | HVC-RROM-05S |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8507 |
| Est First Run | February 1985 |
| PCB Class | HVC-RROM |
| iNES Mapper | 0 |
| Mirroring | Horizontal |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | HVC-BF-0 PRG | 16 KB | 575ED2FE | 1 |
| CHR0 | HVC-BF-0 CHR | 8 KB | C642A1DF | 6 |
| N/A | ROMs Combined | 24 KB | 2B462010 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PRG | Yamaha | YM2211 22846 | Mask ROM 16 KB | DIP-28 | 51 14 83 C | 8503 | |
| CHR | Sharp | RP2D68 0068 | Mask ROM 8 KB | DIP-28 | 52B 5 | 8507 |
