Release Info
| Catalog ID | TDF-BT |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | March 19, 1986 |
| Publisher | Toei Animation |
| Developer | Shouei System |
| Players | 1 |
| Peripherals | Famicom Controller |

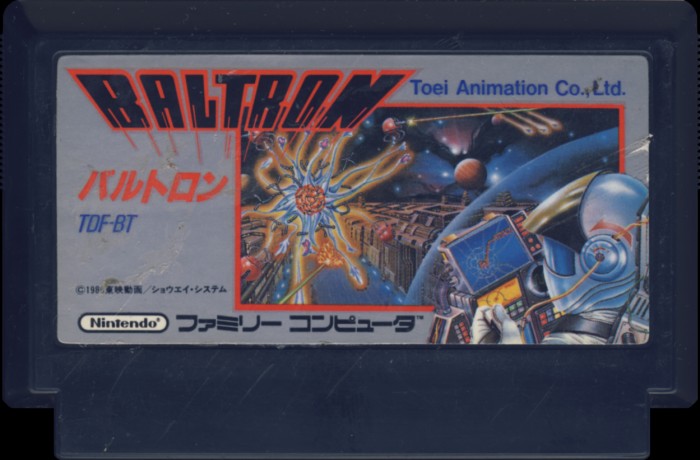

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Black |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | TDF-BT |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 00 |

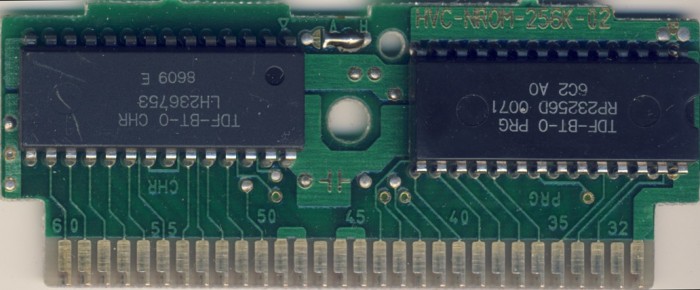

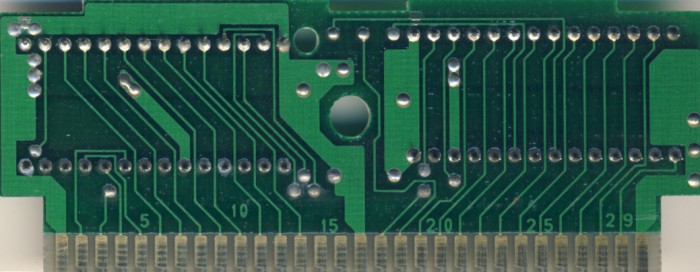

PCB Properties
| Name | HVC-NROM-256K-02 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8611 |
| Est First Run | March 1986 |
| PCB Class | HVC-NROM-256 |
| iNES Mapper | 0 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | TDF-BT-0 PRG | 32 KB | 16342AD0 | 1 |
| CHR0 | TDF-BT-0 CHR | 8 KB | 6AE75F9B | 1 |
| N/A | ROMs Combined | 40 KB | 1F2D9DB7 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PRG | Ricoh | RP23256D 0071 | Mask ROM 32 KB | DIP-28 | 6C2 A0 | 8611 | |
| CHR | Sharp | LH2367 53 | Mask ROM 8 KB | DIP-28 | 8609 E | 8609 |
